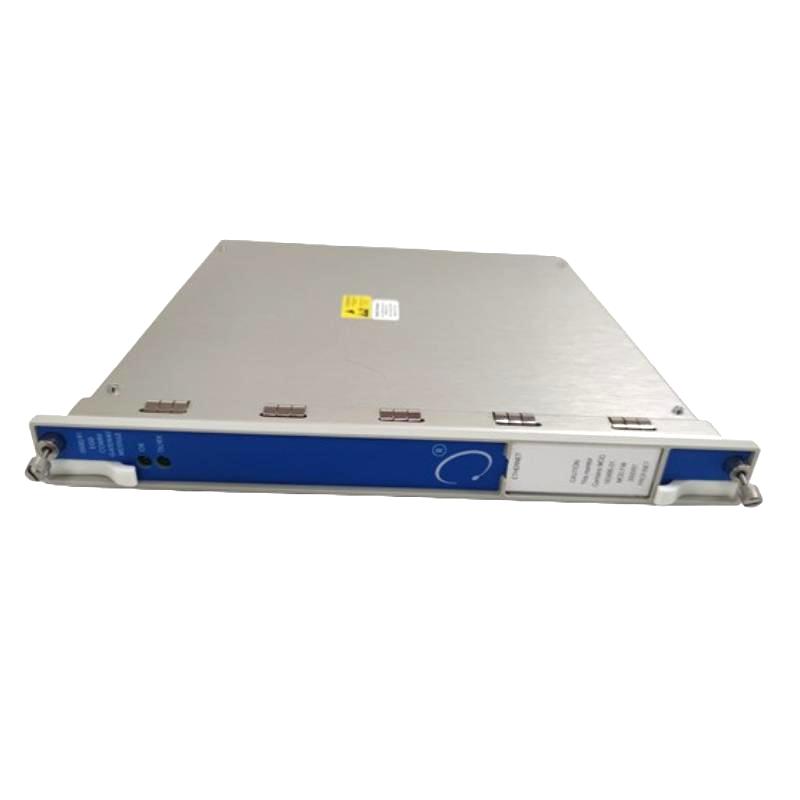

Key Features
High-Speed Ethernet Communication
The module transfers real-time machinery protection data from the 3500 rack to compatible automation systems using EGD and Ethernet UDP/IP protocols.
Real-Time Controller Integration
Designed for direct communication with EGD-compatible controllers, including GE Mark VIe systems, making it suitable for turbine control and other critical industrial applications.
Comprehensive Data Exchange
The gateway can transmit:
-
Rack status
-
Module status
-
Channel status
-
Measurement values (floating point)
-
Alarm setpoints
It also supports receiving control commands such as group reset, alarm inhibit, and trip multiply where supported.
Standard Ethernet Connectivity
The 01 I/O module provides 10BASE-T/100BASE-TX twisted-pair Ethernet connectivity using IEEE 802.3 standards.
Easy Integration with 3500 Systems
The module occupies one full-height front slot, while its corresponding I/O module occupies one full-height rear slot in the 3500 rack. Only one 3500/91 EGD module is supported per rack.
Rugged Industrial Design
Designed for continuous operation in industrial environments with an operating temperature range of -30°C to +65°C and humidity up to 95% non-condensing.
Typical Applications
The 3500/91-01-01-00 is commonly used in:
-
Gas turbines
-
Steam turbines
-
Compressors
-
Generators
-
Pumps
-
Large motors
-
Power generation plants
-
Oil & gas facilities
-
Petrochemical plants
Typical functions include:
-
Machinery protection system integration
-
Real-time vibration and condition monitoring
-
Data transfer to distributed control systems (DCS)
-
Turbine supervisory systems
-
Process automation
Frequently Asked Questions
1. What is the primary purpose of the 3500/91-01-01-00?
It provides Ethernet communication between a Bently Nevada 3500 rack and EGD-compatible industrial control systems for real-time machinery monitoring and control.
2. Which communication protocols are supported?
The module supports:
-
EGD (Ethernet Global Data) Version 2.01
-
Ethernet UDP/IP
3. What Ethernet interface is included?
The 01 I/O module supports 10BASE-T and 100BASE-TX Ethernet over twisted-pair cabling.
4. What does the "-01-01-00" configuration mean?
-
01 – EGD Communication Gateway main module
-
01 – 10BASE-T/100BASE-TX Ethernet I/O module
-
00 – No agency approvals
5. How many gateway modules can be installed in one rack?
Only one 3500/91 EGD Communication Gateway Module is supported per 3500 rack.
6. What firmware is required?
The module requires compatible firmware versions in the 3500/22M Transient Data Interface (TDI) and, for certain consumer exchange functions, compatible monitor module firmware.
7. Is this model suitable for hazardous locations?
The -00 approval option indicates no agency approvals. Other approval options (such as 01 or 02) are available for certified installations.
8. Is this module still available?
The original 3500/91 has been retired in some markets, and 3500/91M EGD Communication Gateway Module is commonly recommended as its successor for new installations.
