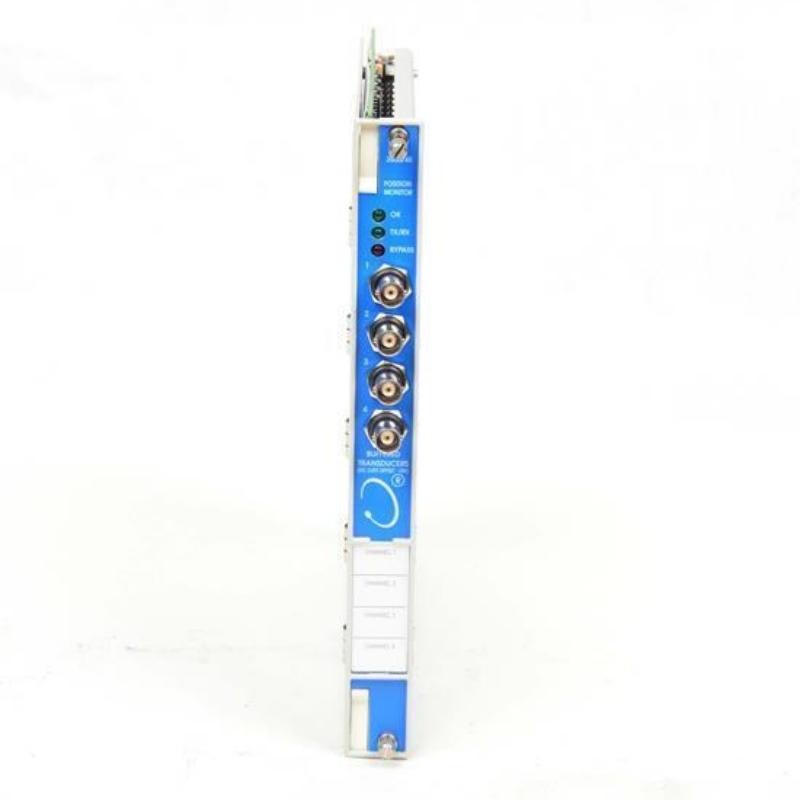

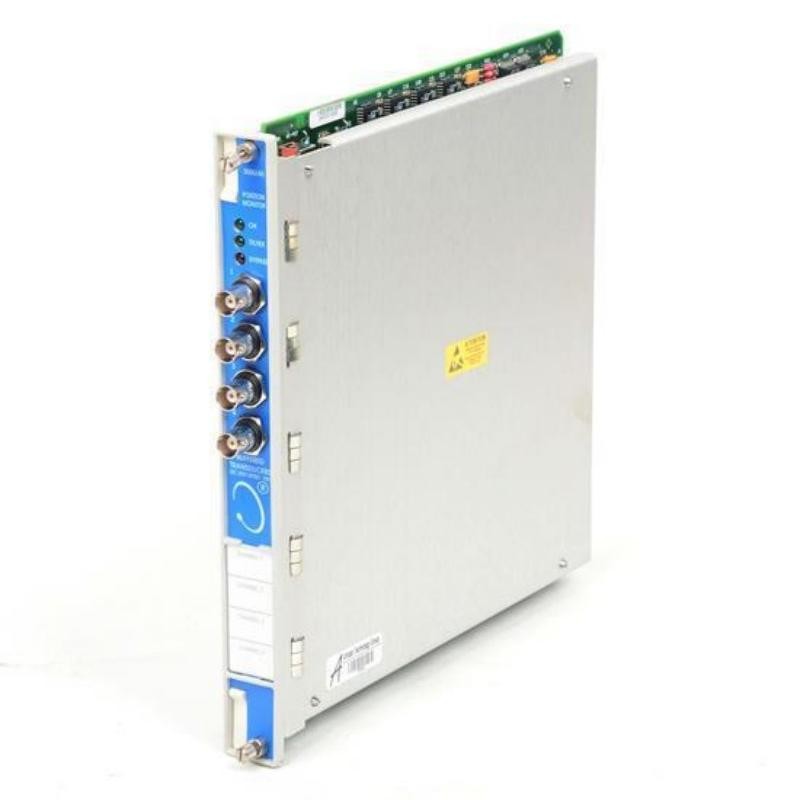

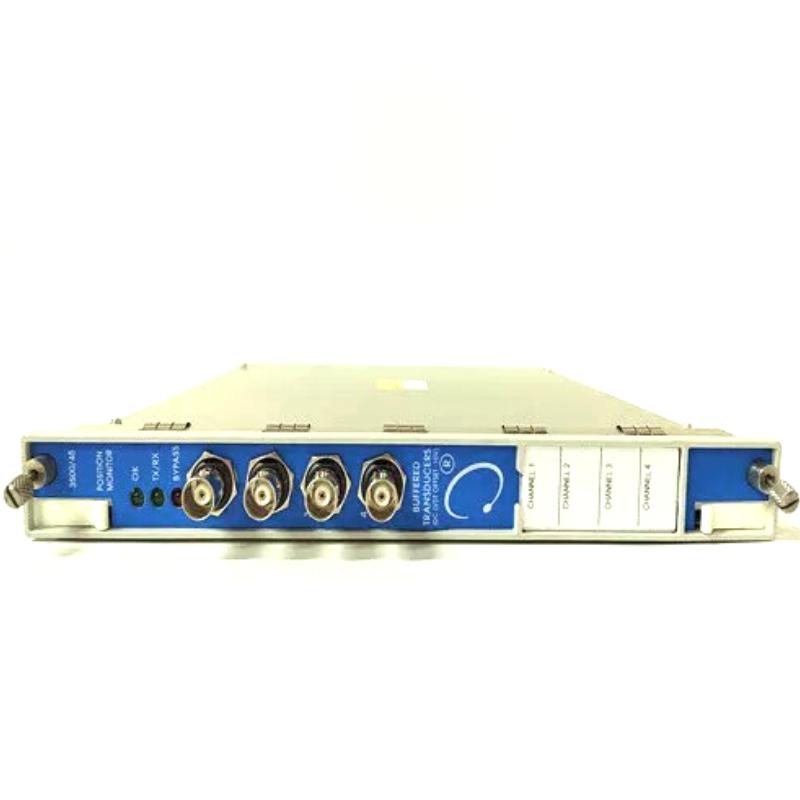

Bently Nevada 3500/45-01-00 176449-04 Position Monitoring Module

Brand:Bently Nevada PLC
Item No.:3500/45-01-00 176449-04
Product Origin:USA
Product Dimensions:241.3 x 24.4 x 241.8 mm
Product Weight:0.9kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

3500 45-01-00 176449-04 43500 45-01-00 176449-043500 45-01-00 140734-04 33500 45-01-00 140734-04 4

Overview

The Bently Nevada 3500/45-01-00 (Spare Part Number: 176449-04) is a 4-channel Position Monitor Module for the 3500 Machinery Protection System. It accepts signals from proximity transducers, Rotary Position Transducers (RPTs), DC and AC Linear Variable Differential Transformers (LVDTs), and rotary potentiometers to monitor critical machine position measurements. The module continuously conditions the input signals, compares them with user-configured alarm setpoints, and provides protection and condition monitoring for rotating machinery.

Technical Specifications

ParameterSpecification
ManufacturerBently Nevada
Model3500/45-01-00
Spare Part Number176449-04
Product TypePosition Monitoring Module
System3500 Machinery Protection System
Channels4 independent monitoring channels
Rack SlotOne full-height front slot
I/O Module01 – Position I/O Module with Internal Terminations (Proximitor®, RPT, DC LVDT)
Agency Approval00 – None
Input TypesProximity Transducers, RPTs, DC LVDTs
Configuration Software3500 Rack Configuration Software
Power SourceSupplied by 3500 Rack
Operating Temperature-30°C to +65°C (-22°F to +150°F)
Storage Temperature-40°C to +85°C (-40°F to +185°F)
Relative HumidityUp to 95% non-condensing


Typical Applications

The 3500/45-01-00 Position Monitor is commonly used in:

  • Steam turbines
  • Gas turbines
  • Centrifugal compressors
  • Turboexpanders
  • Pumps
  • Generators
  • Large industrial motors
  • Turbine Supervisory Instrumentation (TSI) systems

Typical monitored parameters include:

  • Shaft axial position
  • Rotor differential expansion
  • Casing expansion
  • Valve position
  • Shaft movement


Key Features

Four-Channel Monitoring

Supports four independent input channels that can be configured in pairs for different position measurement applications.

Multiple Sensor Compatibility

Compatible with:

  • Bently Nevada 3300 XL Proximitor® systems
  • Rotary Position Transducers (RPTs)
  • DC LVDTs
  • (AC LVDTs require the 05/06 I/O module options)

Machinery Protection

Provides continuous comparison of measured values with programmable alarm limits, enabling reliable protection of critical rotating machinery.

Flexible Configuration

The module is configured using 3500 Rack Configuration Software, allowing users to select measurement type, engineering units, alarm setpoints, and signal processing parameters.

3500 System Integration

Designed for seamless integration with other 3500 Series monitoring modules, communication modules, and relay outputs for comprehensive machinery protection.


Frequently Asked Questions

1. What does the 3500/45 monitor measure?

It monitors position-related parameters such as axial (thrust) position, differential expansion, case expansion, and valve position.

2. What sensors are compatible with the 3500/45-01-00?

This configuration supports:

  • Proximity transducers
  • Rotary Position Transducers (RPTs)
  • DC LVDTs

AC LVDTs require a different I/O module configuration (05 or 06).

3. What does the "-01-00" ordering code mean?

  • 01 = Position I/O Module with Internal Terminations
  • 00 = No agency approvals

4. What is the spare part number?

The spare module part number is 176449-04.

5. Can this module be used for valve position monitoring?

Yes. One of the configurable measurement functions is valve position, using compatible Rotary Position Transducers (RPTs).

6. How many channels does it support?

The module provides 4 monitoring channels, configurable in pairs.

7. Does it include hazardous-area approvals?

No. The 00 approval option indicates no agency approvals. Other approval options are available for different ordering configurations.

8. Which software is used to configure the module?

Configuration is performed using the 3500 Rack Configuration Software.
