Bently Nevada 330172-00-08-50-02-00 3300 5mm Proximity Probe

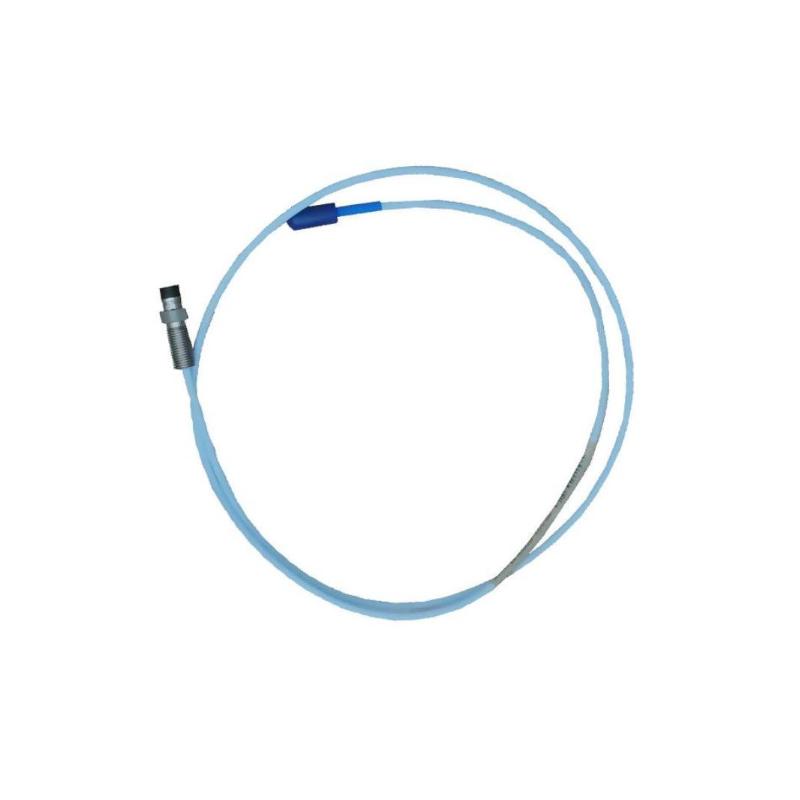

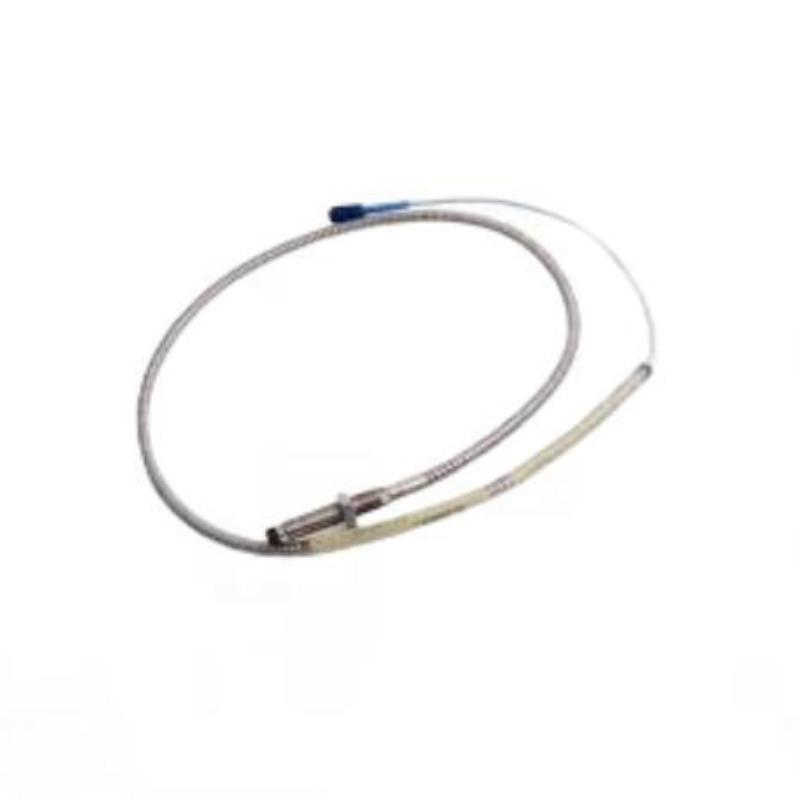

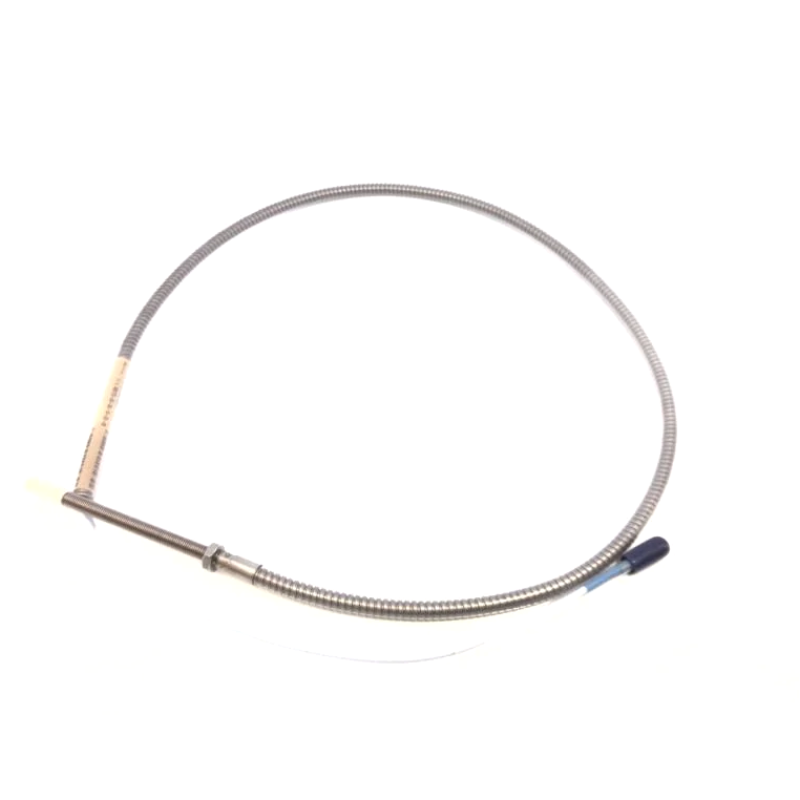

Name: Bently Nevada 330172-00-08-50-02-00 3300 5mm Proximity Probe
Brand: Bently Nevada PLC
SKU: 10062
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330172-00-08-50-02-00
Product Origin:USA
Product Dimensions:Total Length:5.0 meters
Product Weight:1.6kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Armored 3300 5 mm Eddy-Current Probe for Machinery Vibration and Position Monitoring

The Bently Nevada 330172-00-08-50-02-00 is a 3300 5 mm proximity probe with armor, designed for non-contact measurement of shaft vibration, axial position, Keyphasor® signals, and speed on fluid-film bearing machinery. When used with a compatible 3300 XL Proximitor® Sensor and 3300 XL extension cable, it forms a complete transducer system that provides stable, API 670-compliant measurements for critical rotating equipment.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Part Number	330172-00-08-50-02-00
Product Type	3300 5 mm Proximity Probe
Probe Series	3300 5 mm Transducer System
Thread	1/4-28 UNF
Armor	Yes (armored probe cable)
Unthreaded Length	00 = 0.0 in
Overall Case Length	08 = 0.8 in
Total Length	50 = 5.0 m (16.4 ft)
Connector	02 = Miniature coaxial ClickLoc® connector, standard cable
Agency Approval	00 = No agency approvals
Probe Case Material	AISI 303/304 Stainless Steel
Probe Tip Material	Polyphenylene Sulfide (PPS)

Typical Applications

The 330172-00-08-50-02-00 is commonly used on:

Steam turbines
Gas turbines
Centrifugal compressors
Electric motors
Pumps
Gearboxes
Generators
Fans and blowers

Typical measurements include:

Radial shaft vibration
Shaft position
Keyphasor® reference
Rotational speed
Machine condition monitoring

Key Features

Armored cable construction for improved mechanical protection in harsh industrial environments.
5 mm eddy-current sensing technology for accurate non-contact shaft vibration and position measurements.
Complete interchangeability with compatible 3300 XL extension cables and Proximitor® Sensors—no individual component matching or bench calibration required.
Patented TipLoc® probe construction improves the bond between the probe tip and probe body for greater durability.
Compatible with API 670 machinery protection systems.
Suitable for vibration, axial position, Keyphasor®, and speed measurement applications.

Frequently Asked Questions

1. What is the difference between 330171 and 330172?

The 330171 is the standard (non-armored) 5 mm probe, while the 330172 includes stainless-steel armor to protect the cable in demanding environments.

2. What does the "50" option indicate?

It specifies a 5.0-meter (16.4-foot) total transducer system length.

3. What does connector option "02" mean?

It indicates a Miniature coaxial ClickLoc® connector with standard cable.

4. What does approval code "00" mean?

It indicates no agency approvals. Versions ending in 05 include multiple hazardous-area approvals.

5. Which components are required for operation?

The probe must be used with a compatible 3300 XL extension cable and 3300 XL Proximitor® Sensor to form a complete transducer system.
