Product Overview

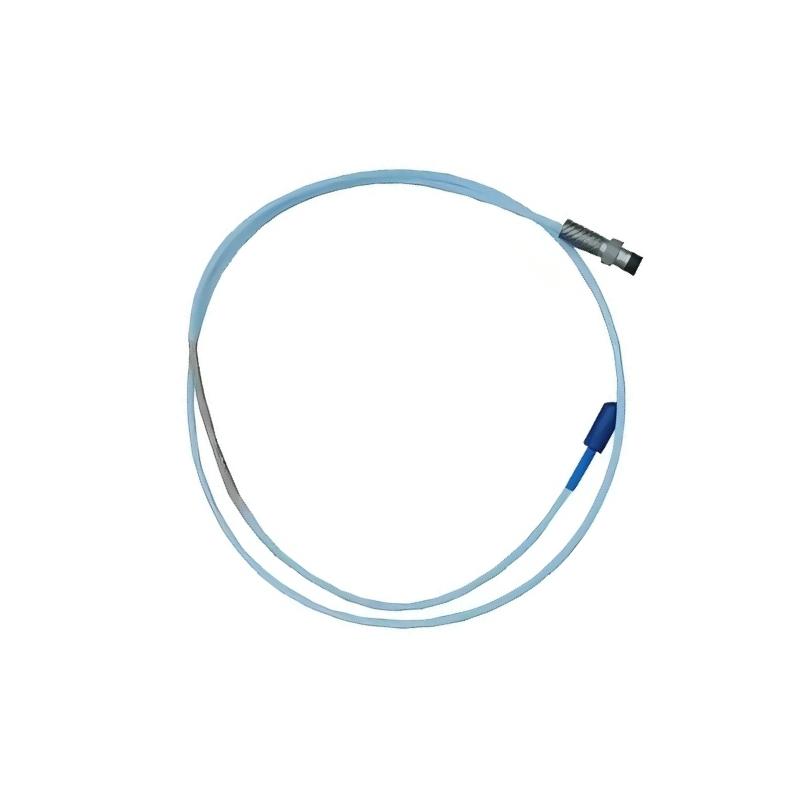

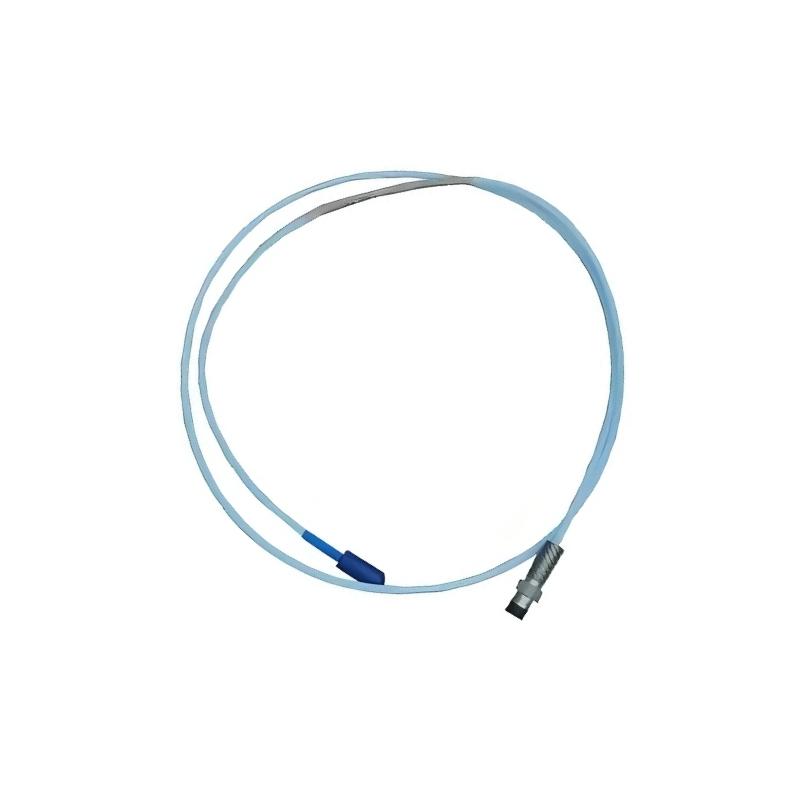

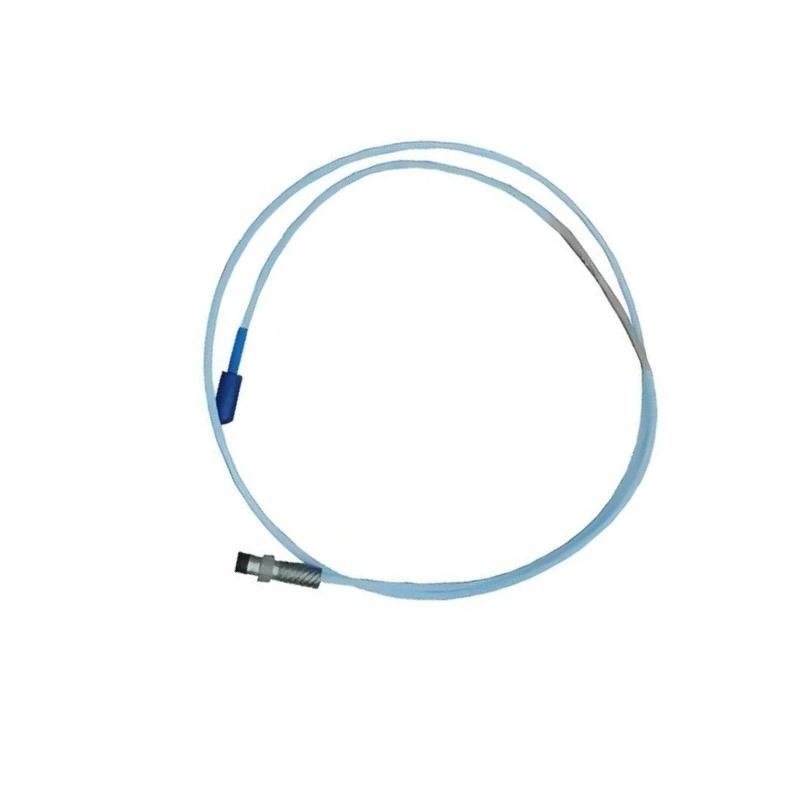

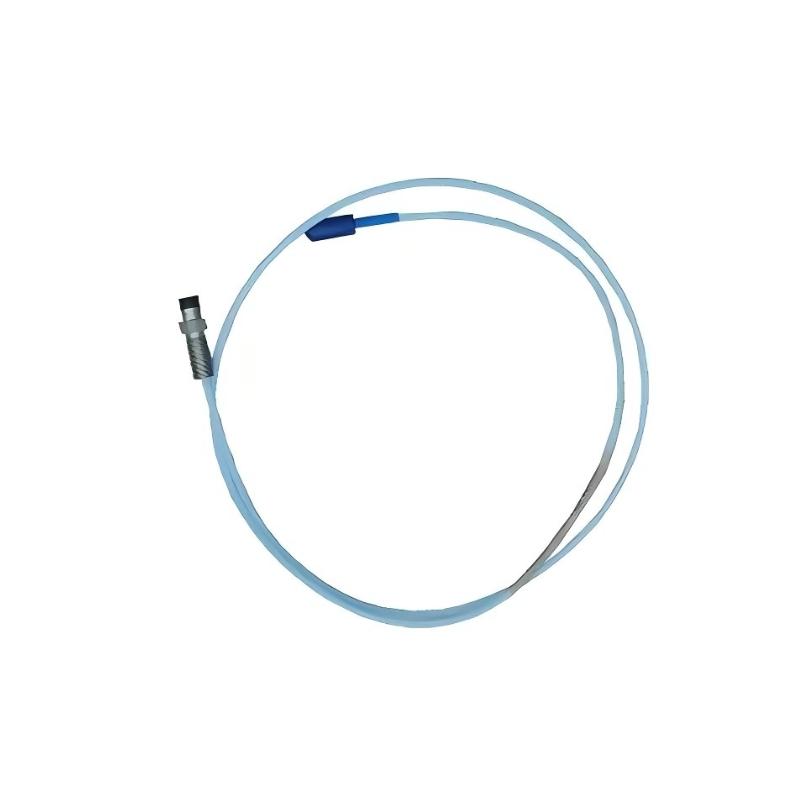

The Bently Nevada 330172-00-08-10-02-05 is a 3300 5 mm armored proximity probe designed for non-contact measurement of shaft vibration, axial position, Keyphasor®, and speed on fluid-film bearing rotating machinery. It is part of the 3300 5 mm Proximity Transducer System, which consists of:
- 330172 5 mm armored proximity probe
- 3300 XL extension cable
- 3300 XL Proximitor® Sensor
When used together, the system provides an output voltage proportional to the distance between the probe tip and the conductive target, enabling accurate vibration and position monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330172-00-08-10-02-05 |
| Product Series | 3300 5 mm Proximity Probe |
| Probe Type | Armored proximity probe |
| Probe Diameter | 5 mm |
| Thread | 1/4-28 UNF |
| Probe Armor | Yes |
| Total System Length | 1.0 m (3.3 ft) |
| Connector | Miniature coaxial ClickLoc®, standard cable |
| Agency Approval | Multiple Approvals (CSA, ATEX, IECEx) |
| Measurement Type | Shaft vibration, position, Keyphasor®, speed |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL Proximitor® Sensor |
