Bently Nevada 330172-00-08-10-01-00 3300 5mm Proximity Probe

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Bently Nevada 330172-00-08-10-01-00 3300 5mm Proximity Probe

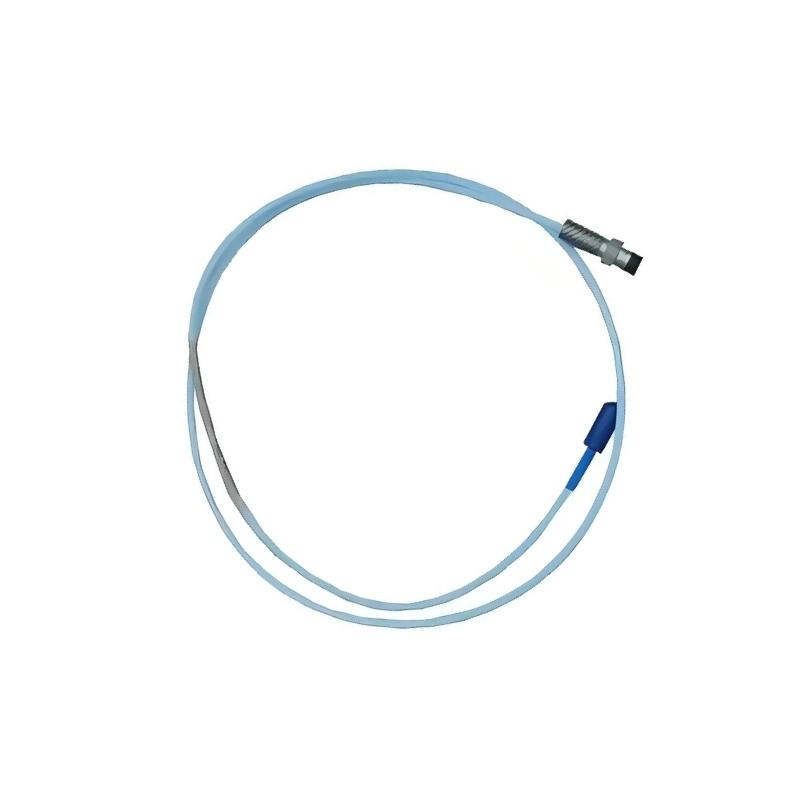

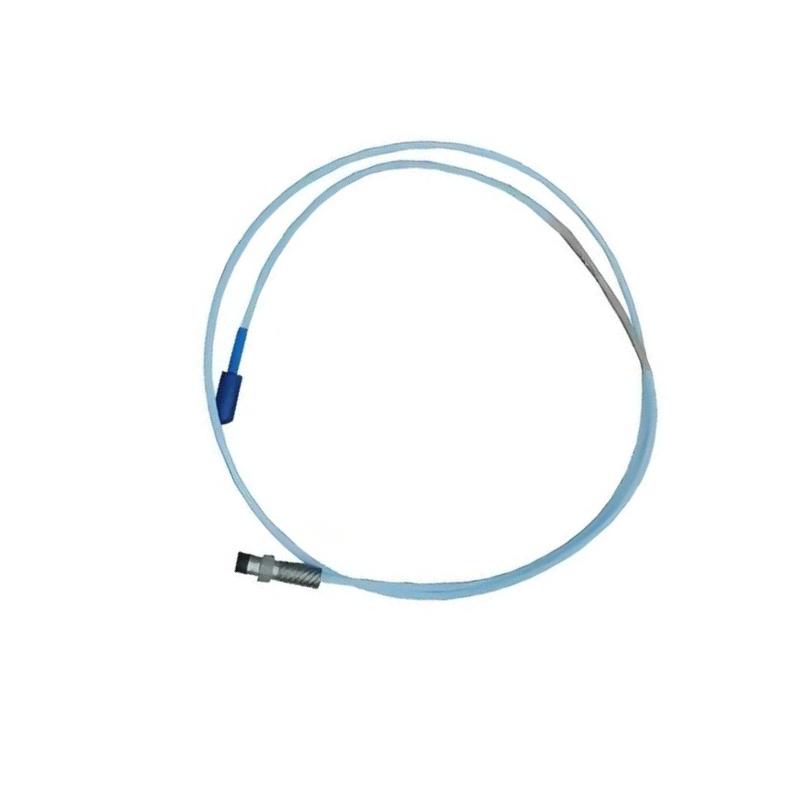

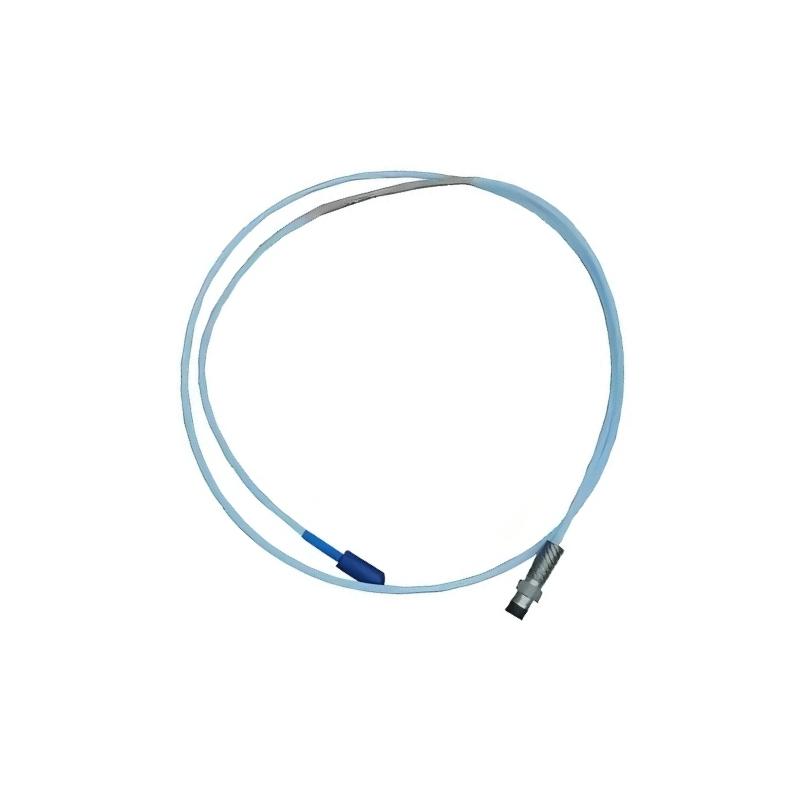

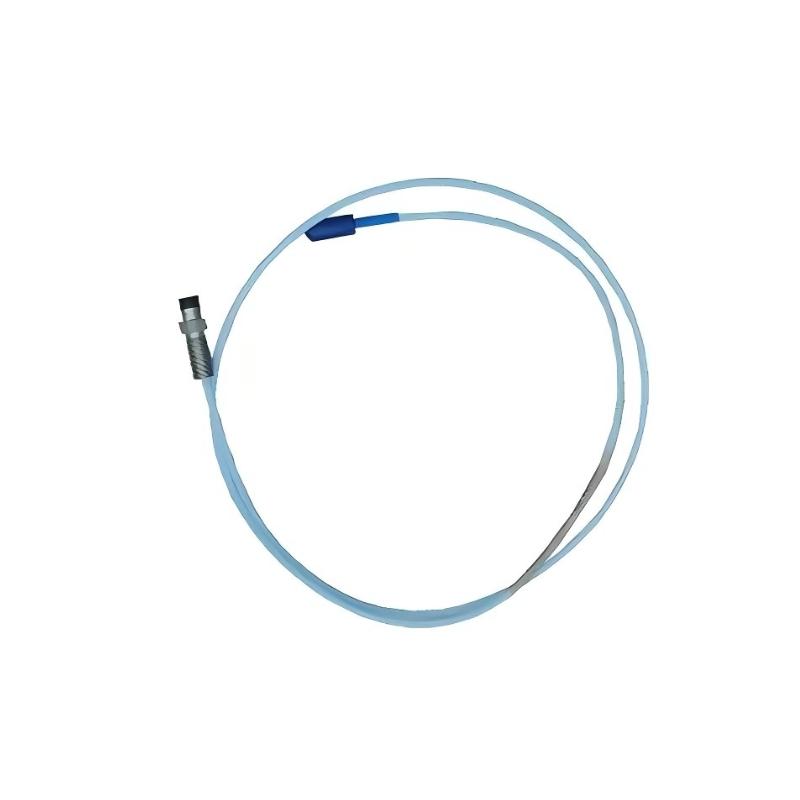

Name: Bently Nevada 330172-00-08-10-01-00 3300 5mm Proximity Probe
Brand: Bently Nevada PLC
SKU: 10060
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330172-00-08-10-01-00
Product Origin:USA
Product Dimensions:Total Length:1.0 meter
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The Bently Nevada 330172-00-08-10-01-00 is a 3300 5 mm armored proximity probe designed for non-contact measurement of shaft vibration, axial position, Keyphasor®, and speed on fluid-film bearing rotating machinery. It is part of the 3300 5 mm Proximity Transducer System, which operates with a compatible 3300 XL extension cable and 3300 XL Proximitor® Sensor to provide accurate static and dynamic shaft displacement measurements.

Unlike the 330171 series (without armor), the 330172 model features stainless-steel armor to provide additional mechanical protection in harsh industrial environments.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Part Number	330172-00-08-10-01-00
Product Type	3300 5 mm Proximity Probe
Probe Series	330172 (Armored)
Probe Diameter	5 mm
Thread	1/4-28 UNF
Armor	Stainless-steel armored cable
Unthreaded Length	00 = 0.0 in
Overall Case Length	08 = 0.8 in (20.3 mm)
Total Probe Cable Length	10 = 1.0 m (3.3 ft)
Connector	01 = Miniature coaxial ClickLoc® connector with connector protector, standard cable
Agency Approval	00 = No approvals required
Probe Case Material	AISI 303/304 stainless steel
Probe Tip Material	Polyphenylene Sulfide (PPS)

Typical Applications

The 330172-00-08-10-01-00 is commonly used on:

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Gearboxes
Generators

Typical measurements include:

Radial shaft vibration
Axial position (thrust)
Keyphasor® reference
Speed measurement
Shaft displacement

Key Features

5 mm eddy-current proximity probe for precise shaft vibration and position measurements.
Armored cable construction provides enhanced resistance to abrasion and mechanical damage.
1/4-28 UNF threaded probe body for standard installations.
ClickLoc® connector with connector protector improves connection security and durability.
Compatible with 3300 XL extension cables and 3300 XL Proximitor® Sensors.
Factory-matched system provides interchangeable components without individual calibration.

Frequently Asked Questions

1. What is the difference between 330171 and 330172?

The 330171 probe has a standard cable, while the 330172 includes stainless-steel armor for improved mechanical protection.

2. What does the "01" connector option mean?

It specifies a Miniature coaxial ClickLoc® connector with connector protector and a standard cable.

3. What does the final "00" indicate?

It means the probe is supplied without hazardous-area agency approvals.

4. Is this probe compatible with 3300 XL Proximitor® Sensors?

Yes. It is designed to operate as part of the 3300 5 mm Transducer System using a compatible 3300 XL extension cable and 3300 XL Proximitor® Sensor.

5. What is the total cable length?

The 10 option specifies a 1.0 m (3.3 ft) total probe cable length.
