Bently Nevada 330172-00-08-05-01-00 3300 5mm Proximity Probe

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Bently Nevada 330172-00-08-05-01-00 3300 5mm Proximity Probe

Name: Bently Nevada 330172-00-08-05-01-00 3300 5mm Proximity Probe
Brand: Bently Nevada PLC
SKU: 10059
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330172-00-08-05-01-00
Product Origin:USA
Product Dimensions:Total Length:0.5 meter
Product Weight:0.16kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

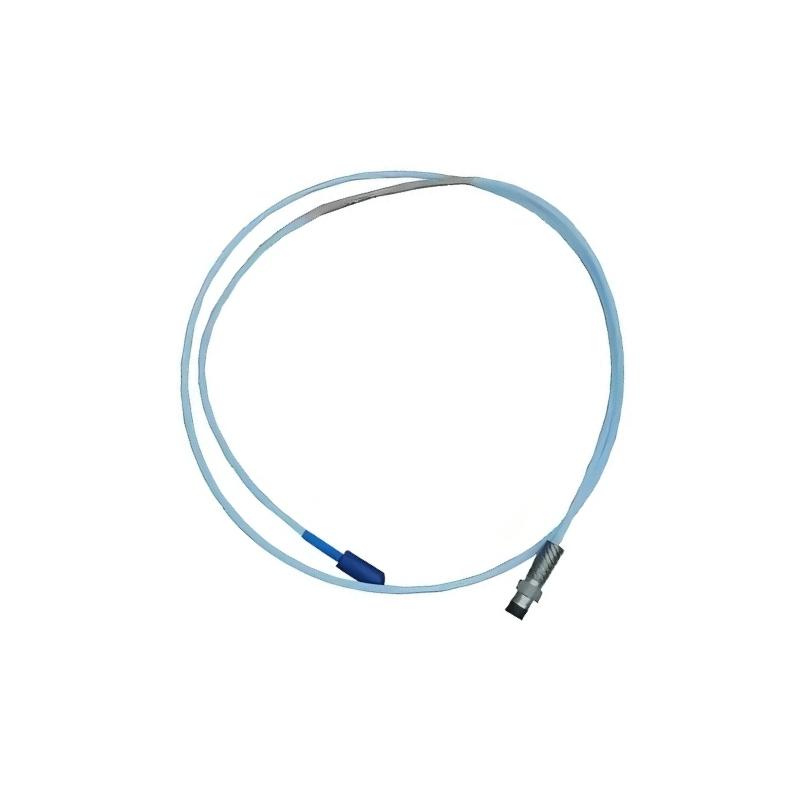

Armored 3300 5 mm Eddy-Current Proximity Probe for Machinery Protection

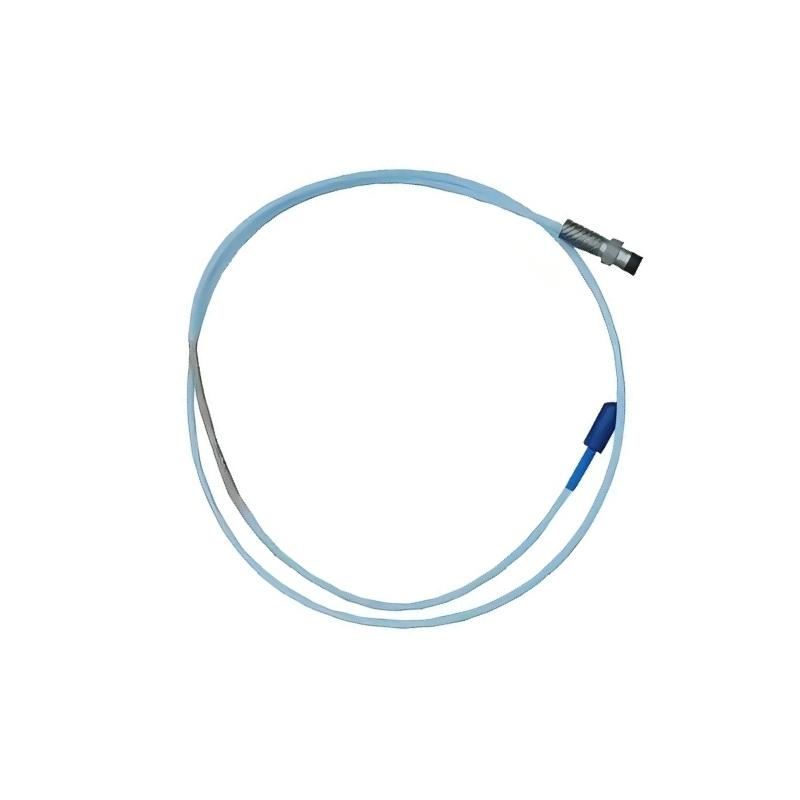

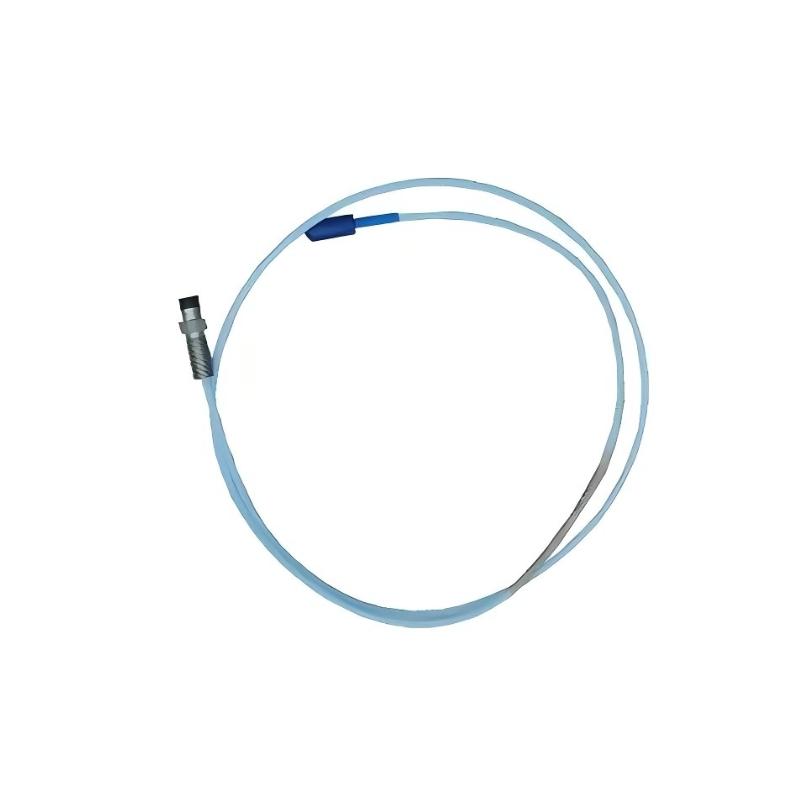

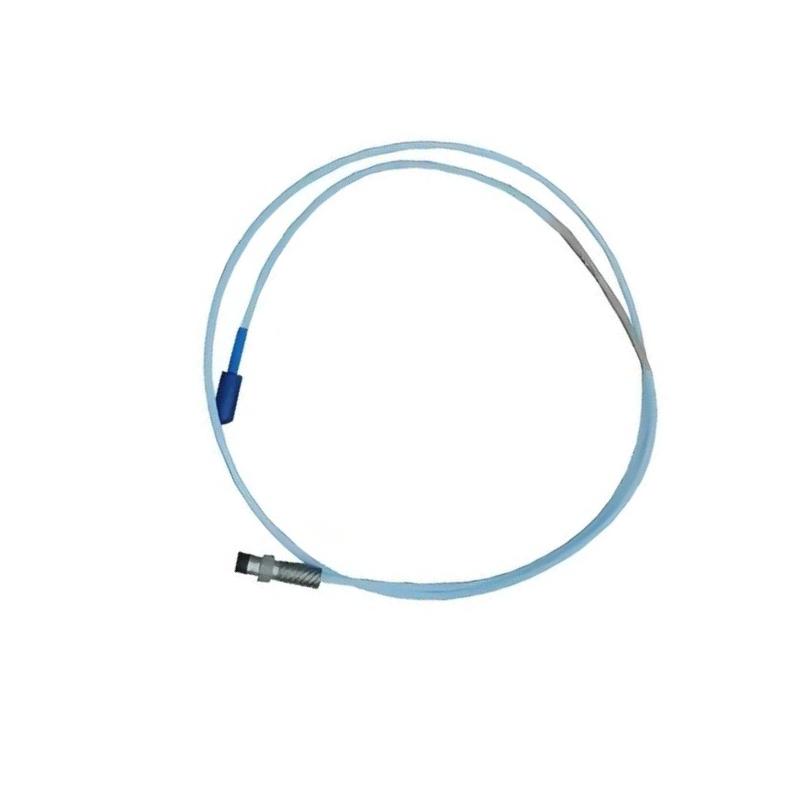

The Bently Nevada 330172-00-08-05-01-00 is a 3300 5 mm Proximity Probe with an armored cable and 1/4-28 UNF mounting thread, designed for shaft vibration, axial position (thrust), Keyphasor®, and speed measurement on fluid-film bearing machines. When used with a 3300 XL extension cable and 3300 XL Proximitor® Sensor, it forms a complete proximity transducer system that provides a voltage output proportional to the distance between the probe tip and the rotating conductive target.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Part Number	330172-00-08-05-01-00
Product Type	3300 5 mm Proximity Probe
Probe Diameter	5 mm
Probe Thread	1/4-28 UNF
Armor	Yes
Measurement Principle	Eddy-current, non-contact
Compatible Extension Cable	3300 XL Extension Cable
Compatible Sensor	3300 XL Proximitor® Sensor
Primary Applications	Shaft vibration, position, Keyphasor®, speed measurement
Operating Probe Temperature	-35°C to +177°C (-31°F to +351°F)

Typical Applications

The 330172-00-08-05-01-00 is commonly installed on:

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Generators
Gearboxes

Typical measurements include:

Shaft vibration
Shaft position
Thrust position
Phase reference (Keyphasor®)
Speed monitoring

Key Features

Armored Cable Construction

The stainless-steel armored cable provides additional protection against abrasion, crushing, and harsh industrial environments, making it suitable for demanding machinery installations.

5 mm Eddy-Current Probe

The probe delivers precise non-contact measurements of shaft displacement and vibration with stable performance over a wide operating temperature range.

Complete System Compatibility

The probe is intended for use with:

3300 XL 5 mm Extension Cable
3300 XL Proximitor® Sensor

The complete transducer system is factory calibrated, eliminating the need for individual component matching.

Frequently Asked Questions

1. What is the difference between 330171 and 330172?

The 330171 has a non-armored cable, while the 330172 includes a stainless-steel armored cable for greater mechanical protection.

2. Is this a complete transducer system?

No. This part number is the probe only. A compatible 3300 XL extension cable and 3300 XL Proximitor® Sensor are required for operation.

3. What mounting thread does this probe use?

It uses a 1/4-28 UNF threaded case.

4. What does the "00" agency approval option mean?

It indicates the probe is supplied without agency approvals. Other approval options are available for specific regional or hazardous-area requirements.

5. What measurements can this probe perform?

It is designed for shaft vibration, shaft position, Keyphasor®, and rotational speed measurements when installed as part of the complete transducer system.
