Bently Nevada 330171-24-57-10-01-05 3300 5mm Proximity Probe

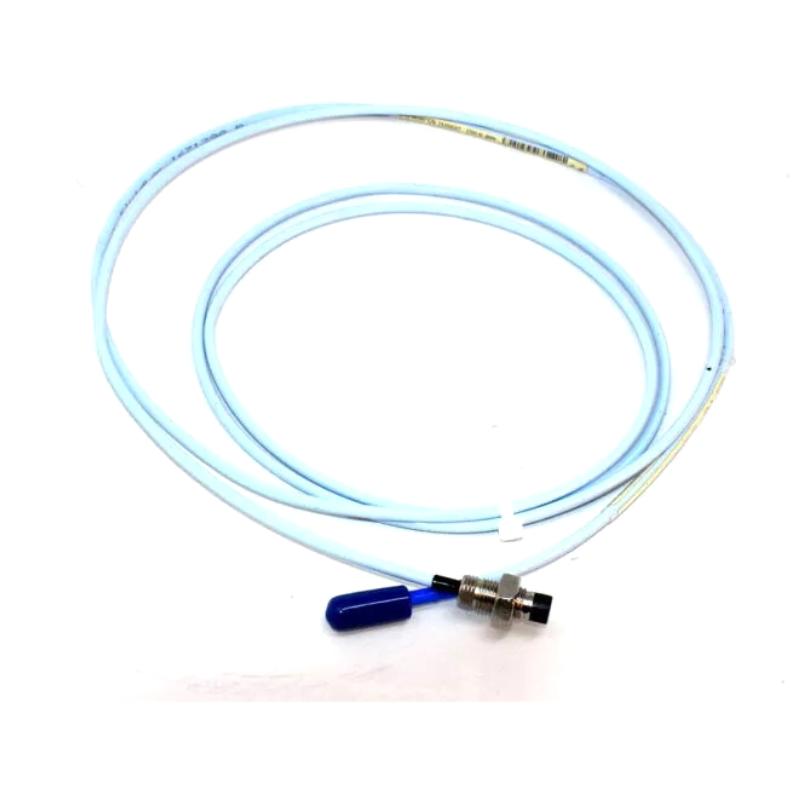

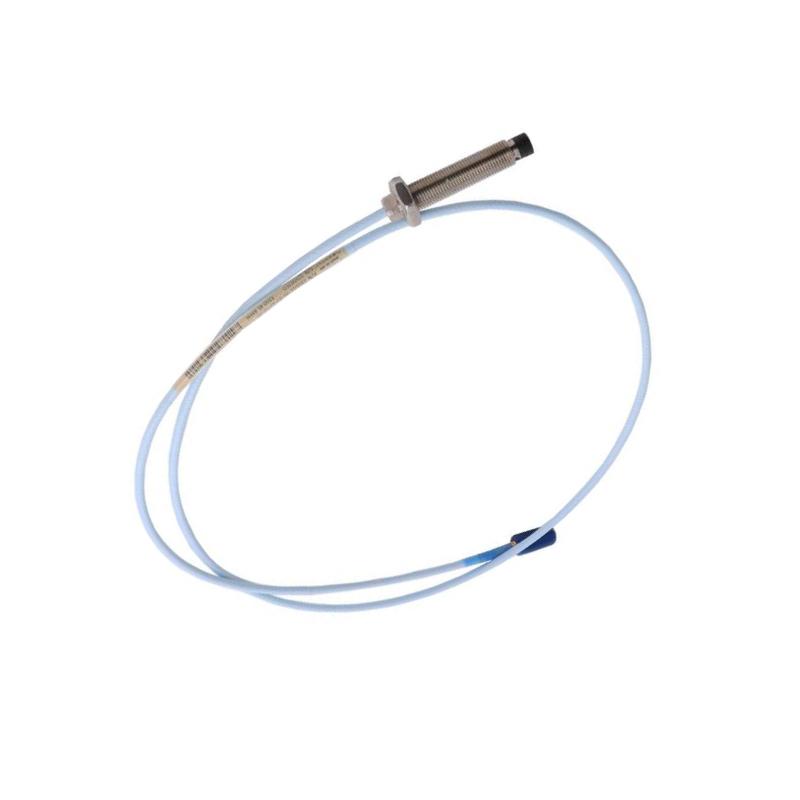

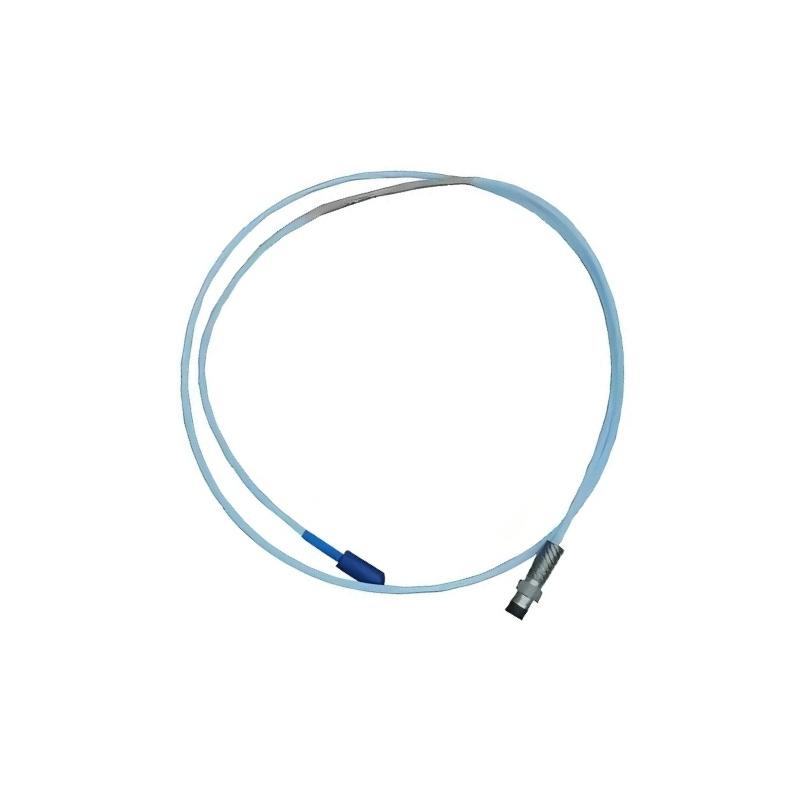

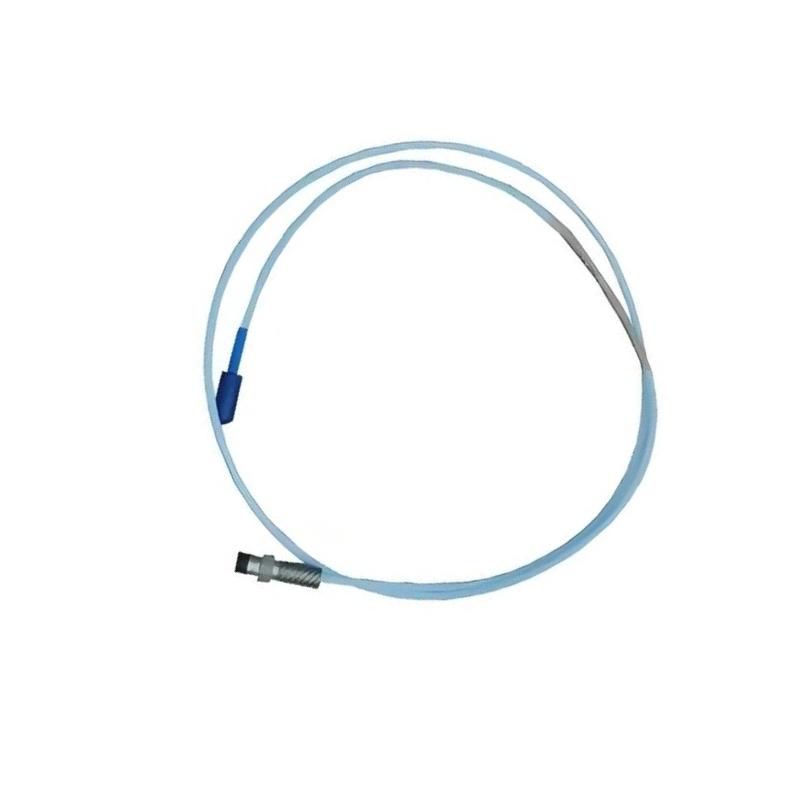

Name: Bently Nevada 330171-24-57-10-01-05 3300 5mm Proximity Probe
Brand: Bently Nevada PLC
SKU: 10058
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330171-24-57-10-01-05
Product Origin:USA
Product Dimensions:Total Length:1.0 meter
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Precision Eddy-Current Probe for Machinery Vibration and Position Monitoring

The Bently Nevada 330171-24-57-10-01-05 is a 3300 5 mm Proximity Probe designed for use in the 3300 5 mm Proximity Transducer System. When paired with a compatible 3300 XL extension cable and 3300 XL Proximitor® Sensor, it provides accurate, non-contact measurement of shaft vibration, radial position, axial position, Keyphasor®, and speed on fluid-film bearing machines. The 3300 5 mm system offers complete probe, extension cable, and Proximitor® interchangeability without individual component calibration.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Part Number	330171-24-57-10-01-05
Product Series	3300 5 mm Proximity Probe
Probe Diameter	5 mm
Measurement Technology	Eddy-current, non-contact
Compatible System	3300 5 mm Proximity Transducer System
Compatible Extension Cable	3300 XL Extension Cable
Compatible Sensor	3300 XL Proximitor® Sensor
Probe Temperature Range	–35°C to +177°C (–31°F to +351°F)
Recommended Probe Case Torque	5.1 N·m (45 in·lb)
Maximum Probe Case Torque	7.3 N·m (65 in·lb)
Minimum Cable Bend Radius	25.4 mm (1 in.)

Typical Applications

The 330171-24-57-10-01-05 is commonly used on:

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Gearboxes
Fans and blowers
Generators

Typical measurements include:

Shaft radial vibration
Shaft position
Axial position
Keyphasor® reference
Rotational speed monitoring

Key Features

5 mm eddy-current sensing technology for precise non-contact shaft displacement measurements.
Measures both dynamic vibration and static position.
Supports Keyphasor® and speed measurement applications.
Fully interchangeable with compatible 3300 XL extension cables and 3300 XL Proximitor® Sensors.
Wide operating temperature range up to 177°C (351°F).
Designed for long-term reliability in demanding industrial environments.
Available with multiple hazardous-area approvals through the 05 approval option.

Frequently Asked Questions

1. What is the 330171-24-57-10-01-05 used for?
It is used for non-contact measurement of shaft vibration, shaft position, Keyphasor®, and rotational speed in rotating machinery.

2. Is this a complete transducer system?
No. This part number is the probe only. It must be used with a compatible 3300 XL extension cable and 3300 XL Proximitor® Sensor.

3. What is the operating temperature range?
The probe operates from –35°C to +177°C (–31°F to +351°F).

4. What does the "-05" suffix indicate?
The 05 option identifies a version with multiple hazardous-area approvals, including certifications such as CSA, ATEX, and IECEx, depending on the applicable regional approval guide.

5. Is the probe interchangeable with other 3300 5 mm probes?
Yes. Within the same system configuration, 3300 5 mm probes are designed for interchangeability when used with the correct extension cable and Proximitor® Sensor.
