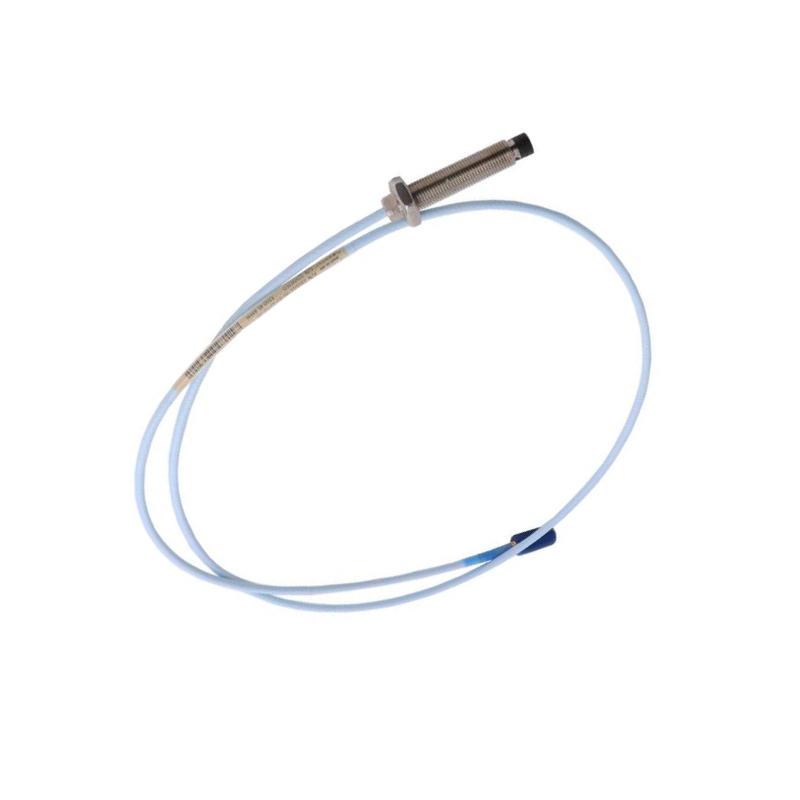

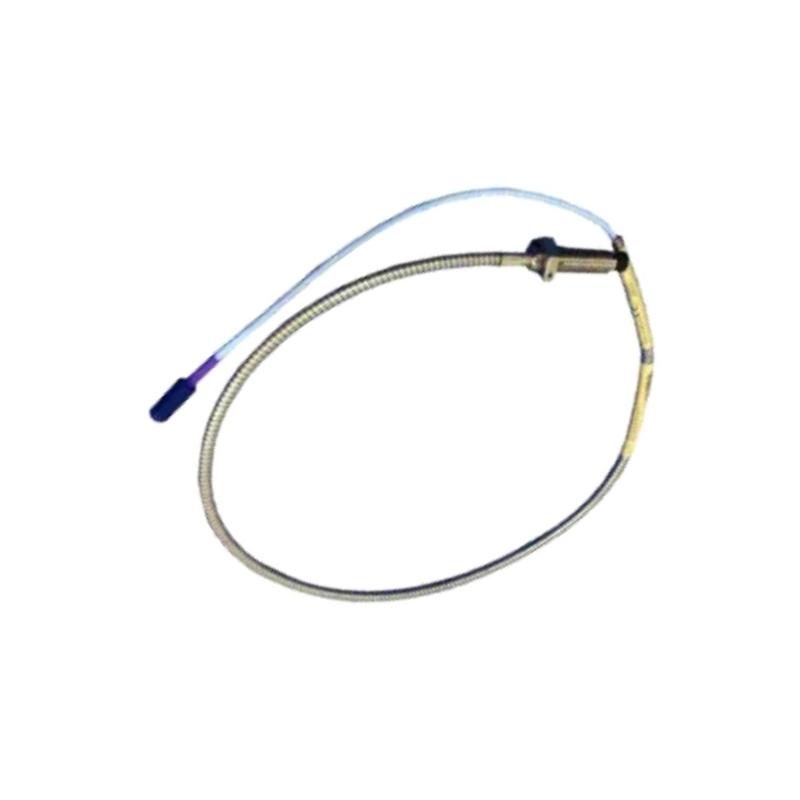

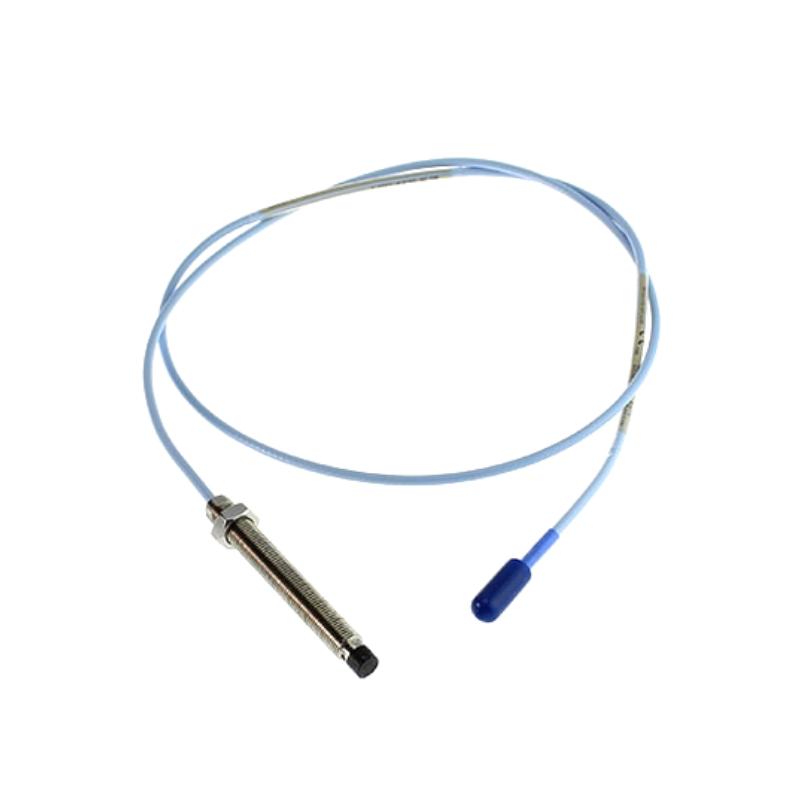

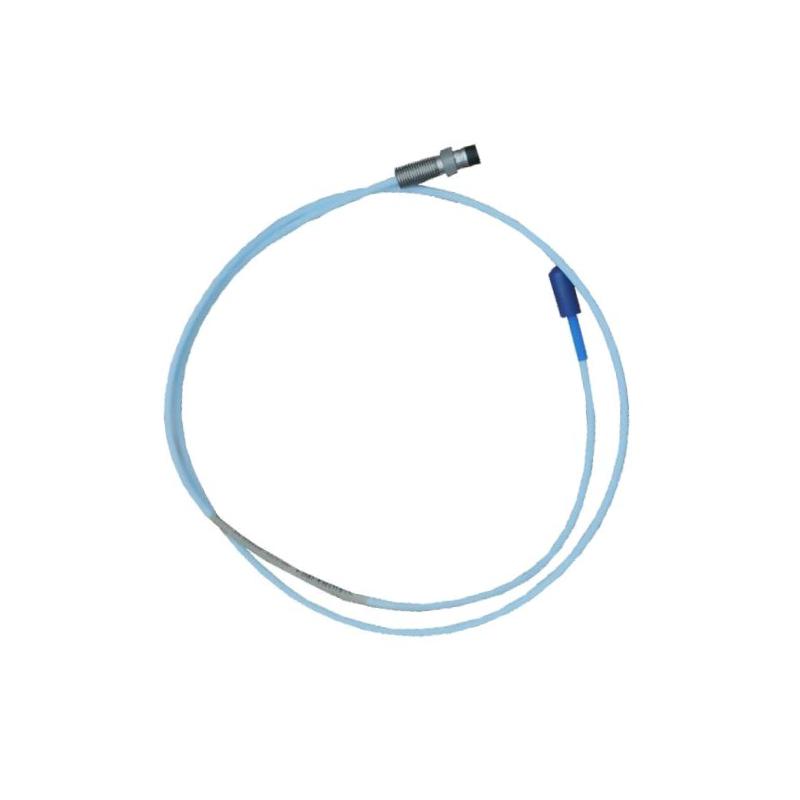

Bently Nevada 330171-24-40-05-02-00 3300 5mm Proximity Probe

Name: Bently Nevada 330171-24-40-05-02-00 3300 5mm Proximity Probe
Brand: Bently Nevada PLC
SKU: 10057
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330171-24-40-05-02-00
Product Origin:USA
Product Dimensions:Total Length:0.5 meter
Product Weight:0.16kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The Bently Nevada 330171-24-40-05-02-00 is a 3300 5 mm Proximity Probe designed for non-contact measurement of shaft vibration, radial displacement, axial position, Keyphasor® reference, and speed on fluid-film bearing rotating machinery. It is part of the 3300 5 mm Proximity Transducer System, which consists of:

330171 5 mm Proximity Probe
3300 XL Extension Cable
3300 XL Proximitor® Sensor

The complete transducer system provides an output voltage proportional to the distance between the probe tip and the conductive target, enabling accurate static and dynamic measurements.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Part Number	330171-24-40-05-02-00
Product Type	3300 5 mm Proximity Probe
Probe Diameter	5 mm
Thread Type	1/4-28 UNF, unarmored
Unthreaded Length	24 = 2.4 in
Overall Case Length	40 = 4.0 in
Probe Cable Length	05 = 0.5 m (1.6 ft)
Connector Option	02 = Miniature coaxial ClickLoc connector, standard cable
Agency Approval	00 = No agency approvals
Probe Temperature Range	-35°C to +177°C (-31°F to +351°F)
Probe Tip Material	Polyphenylene Sulfide (PPS)
Probe Case Material	AISI 303/304 Stainless Steel

Typical Applications

The 330171-24-40-05-02-00 is commonly used on:

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Gearboxes
Fans and blowers

Typical measurements include:

Shaft radial vibration
Shaft position
Keyphasor® reference
Speed measurement
Rotor displacement

Key Features

5 mm eddy-current proximity probe for precise non-contact shaft vibration and position measurements.
Compatible with 3300 XL Extension Cables and 3300 XL Proximitor® Sensors for complete system interchangeability.
Measures both static displacement and dynamic vibration.
ClickLoc miniature coaxial connector provides secure, vibration-resistant installation.
1/4-28 UNF threaded probe for standard mounting.
Stainless-steel construction with PPS probe tip for durability in industrial environments.
Designed for use on fluid-film bearing machines and rotating equipment.

Frequently Asked Questions

1. What does the "24" option indicate?
It specifies a 2.4-inch unthreaded length.

2. What does the "40" option indicate?
It specifies a 4.0-inch overall case length.

3. What does the "05" option indicate?
It specifies a 0.5-meter (1.6-foot) probe cable length.

4. What connector does this probe use?
It uses a Miniature coaxial ClickLoc connector (Option 02).

5. What does the "00" approval option mean?
It indicates no agency approvals are included with this configuration.

6. Is this probe interchangeable with 3300 XL components?
Yes. It is designed to operate with 3300 XL extension cables and 3300 XL Proximitor® Sensors as part of the complete 3300 5 mm transducer system.

7. What is the operating temperature range?
The probe is rated for -35°C to +177°C (-31°F to +351°F).

8. What industries typically use this probe?
It is widely used in oil & gas, power generation, petrochemical, mining, and other industries that require continuous monitoring of critical rotating machinery.
