Bently Nevada 330171-20-55-05-02-CN 3300 5mm Proximity Probe

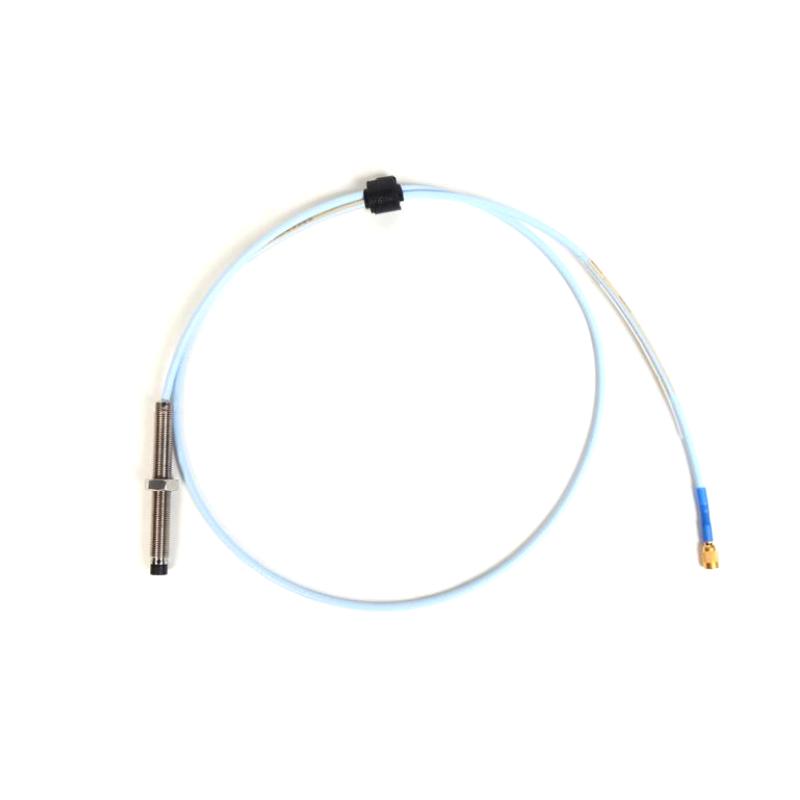

Name: Bently Nevada 330171-20-55-05-02-CN 3300 5mm Proximity Probe
Brand: Bently Nevada PLC
SKU: 10056
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330171-20-55-05-02-CN
Product Origin:USA
Product Dimensions:Total Length:0.5 meter
Product Weight:0.16kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The Bently Nevada 330171-20-55-05-02-CN is a 3300 5 mm Proximity Probe designed for non-contact measurement of shaft vibration, axial position, Keyphasor® (speed/reference), and other rotating machinery parameters. When used with a compatible 3300 XL extension cable and 3300 XL Proximitor® Sensor, it forms a complete proximity transducer system that provides accurate and stable measurements for machinery protection and condition monitoring.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Part Number	330171-20-55-05-02-CN
Product Type	3300 5 mm Proximity Probe
Probe Diameter	5 mm
Probe Thread	1/4-28 UNF, without armor
Unthreaded Length	20 = 2.0 in (50.8 mm)
Overall Case Length	55 = 5.5 in (139.7 mm)
Cable Length	05 = 0.5 m (1.6 ft)
Connector	02 = Miniature coaxial ClickLoc connector, standard cable
Approval Option	CN = Country-specific approvals (China)
Probe Tip Material	Polyphenylene Sulfide (PPS)
Probe Case Material	AISI 303/304 Stainless Steel
Cable Type	75 Ω triaxial FEP insulated
Operating Temperature	-35°C to +177°C (-31°F to +351°F)

Typical Applications

The 330171-20-55-05-02-CN is commonly used for:

Radial shaft vibration monitoring
Axial (thrust) position measurement
Keyphasor® speed and phase reference
Centrifugal compressors
Steam and gas turbines
Pumps
Electric motors
Fans and blowers

Key Features

5 mm eddy-current proximity probe for precise non-contact shaft vibration and position measurements.
Complete system compatibility with 3300 XL extension cables and Proximitor® Sensors, eliminating individual component calibration.
Patented TipLoc® molded construction improves probe durability and mechanical strength.
75 Ω triaxial FEP-insulated cable provides excellent electrical performance and resistance to industrial environments.
ClickLoc miniature coaxial connector offers secure, vibration-resistant installation.
API 670-compatible transducer system for critical rotating machinery applications.

Frequently Asked Questions

1. What does the "20-55" configuration indicate?

It specifies a 2.0-inch unthreaded length and a 5.5-inch overall probe case length.

2. What does the "05" option represent?

It indicates a 0.5-meter (1.6-foot) integral probe cable.

3. What connector does this probe use?

It uses a Miniature coaxial ClickLoc connector with a standard cable.

4. What does the "CN" suffix mean?

The CN option identifies a China country-specific approval configuration. Exact certification details should be confirmed using the applicable approvals guide supplied by Bently Nevada.

5. What is the operating temperature range?

The probe operates from -35°C to +177°C (-31°F to +351°F).

6. Which components are required for a complete transducer system?

A complete system includes:

330171 5 mm Proximity Probe
3300 XL Extension Cable
3300 XL Proximitor® Sensor
