Product Overview

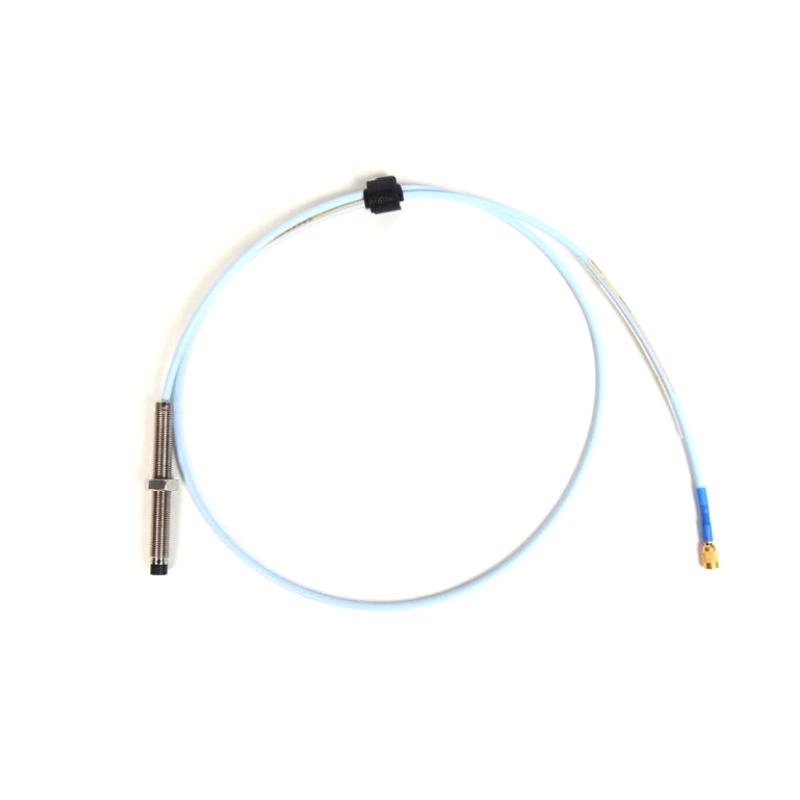

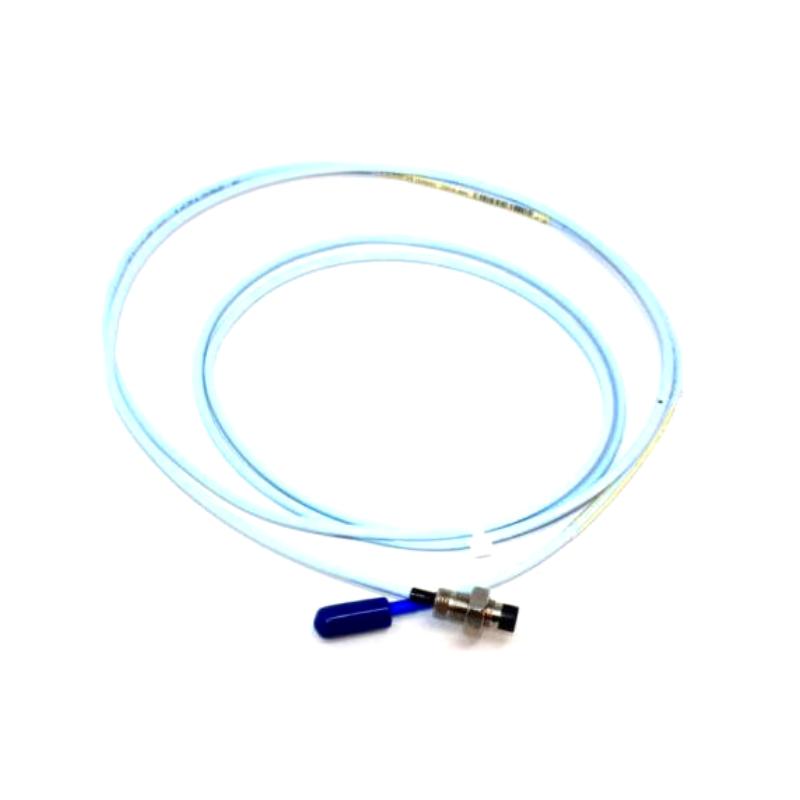

The Bently Nevada 330171-12-23-10-01-05 is a 3300 5 mm Proximity Probe designed for accurate non-contact measurement of shaft vibration, axial position, Keyphasor® (speed/reference), and other rotating machinery parameters. It is part of the 3300 5 mm Transducer System, which consists of a 3300 5 mm probe, a 3300 XL extension cable, and a 3300 XL Proximitor® Sensor. The complete system provides a voltage output proportional to the distance between the probe tip and the target surface.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330171-12-23-10-01-05 |
| Product Type | 3300 5 mm Proximity Probe |
| Probe Thread | 1/4-28 UNF |
| Armor | Without armor |
| Unthreaded Length | 1.2 in (Option 12) |
| Overall Case Length | 2.3 in (Option 23) |
| Total Cable Length | 1.0 m / 3.3 ft (Option 10) |
| Connector | Miniature coaxial ClickLoc® connector with connector protector (Option 01) |
| Agency Approval | Multiple Approvals (Option 05) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Operating Temperature | –35°C to +177°C (–31°F to +351°F) |
