Bently Nevada 330171-12-23-10-01-00 3300 5mm Proximity Probe

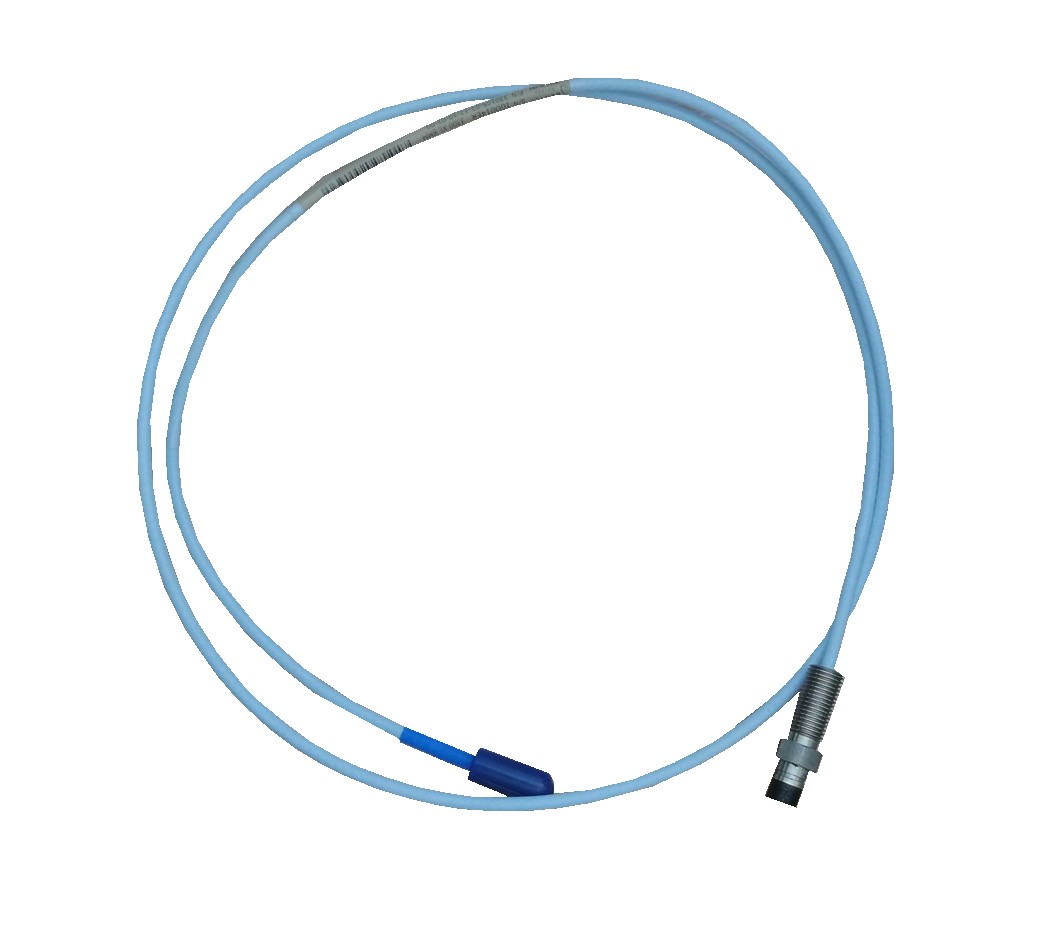

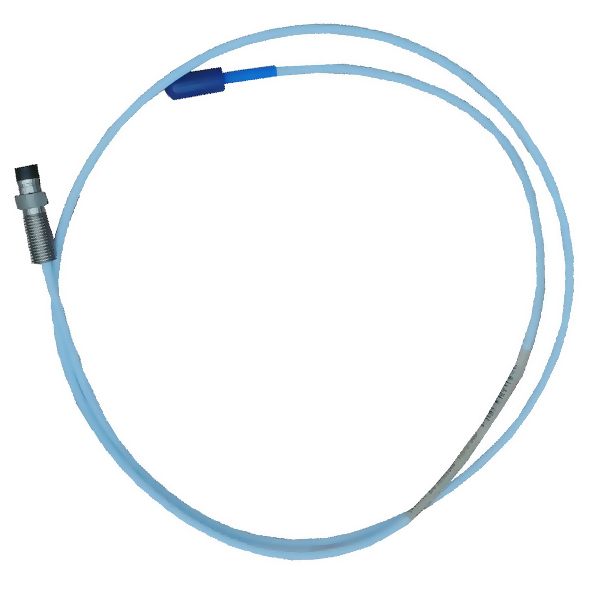

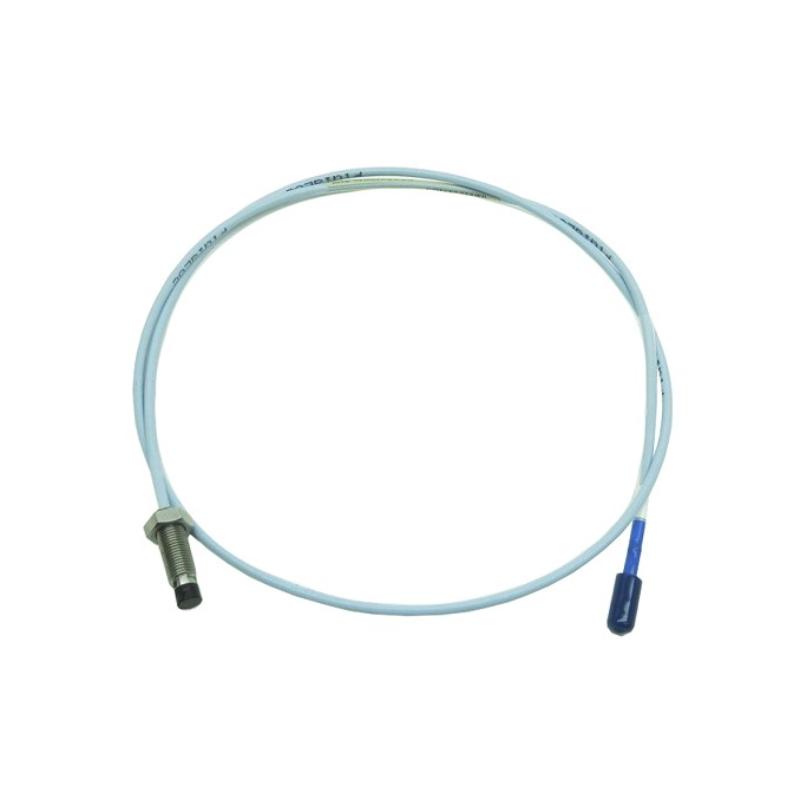

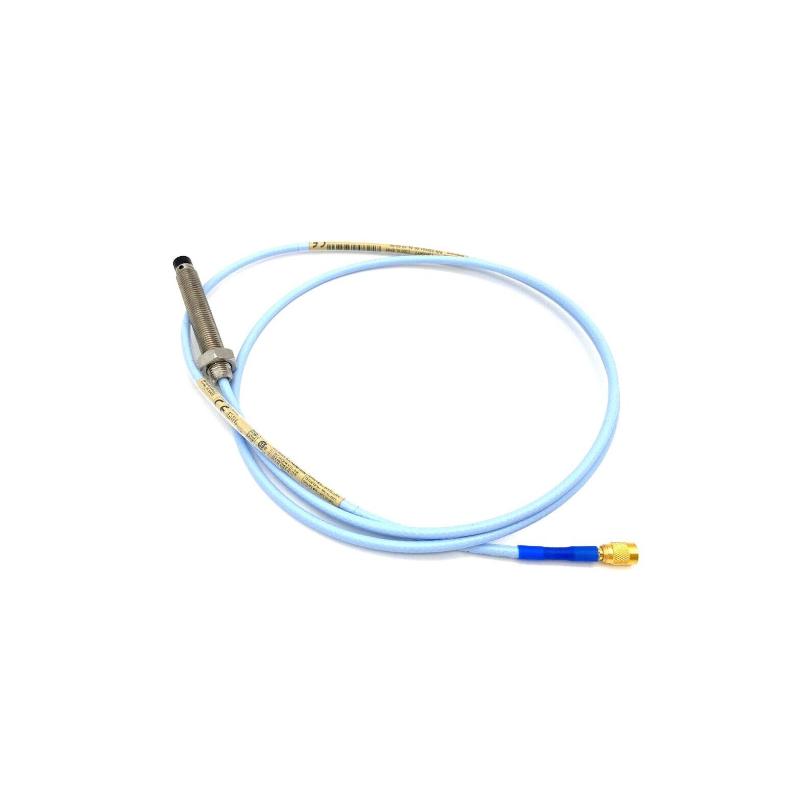

Name: Bently Nevada 330171-12-23-10-01-00 3300 5mm Proximity Probe
Brand: Bently Nevada PLC
SKU: 10051
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330171-12-23-10-01-00
Product Origin:USA
Product Dimensions:Total Length:1.0 meter
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The Bently Nevada 330171-12-23-10-01-00 is a 3300 5 mm Proximity Probe designed for non-contact measurement of shaft vibration, shaft position, Keyphasor®, and rotational speed on fluid-film bearing machinery. The probe is part of the 3300 5 mm Transducer System, which operates with a compatible 3300 XL Extension Cable and 3300 XL Proximitor® Sensor to provide accurate displacement measurements across a wide operating temperature range.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Part Number	330171-12-23-10-01-00
Product Type	3300 5 mm Proximity Probe
Probe Diameter	5 mm
Thread Type	1/4-28 UNF, without armor
Measurement Principle	Eddy-current, non-contact
Probe Tip Diameter	5 mm
Compatible Extension Cable	3300 XL Extension Cable
Compatible Proximitor®	3300 XL Proximitor® Sensor
Typical Applications	Shaft vibration, position, Keyphasor®, speed

Typical Applications

The 330171-12-23-10-01-00 is commonly installed on:

Steam turbines
Gas turbines
Compressors
Pumps
Electric motors
Gearboxes
Generators

Typical monitoring functions include:

Radial shaft vibration
Axial shaft position
Keyphasor® reference
Rotational speed measurement
Machinery protection systems

Key Features

5 mm eddy-current proximity probe for accurate non-contact shaft measurements.
Compatible with the complete 3300 5 mm Transducer System, including a 3300 XL Extension Cable and 3300 XL Proximitor® Sensor.
1/4-28 UNF threaded probe without stainless-steel armor.
1.0 m total system length, suitable for compact machinery installations.
ClickLoc® connector with connector protector for secure installation and improved durability.
Designed for shaft vibration, shaft position, Keyphasor®, and speed measurement applications.
Stable output over a wide operating temperature range with factory-matched system components.

Frequently Asked Questions

1. What is the 330171-12-23-10-01-00 used for?
It is used for non-contact measurement of shaft vibration, shaft position, Keyphasor®, and rotational speed on rotating machinery.

2. What does the "10" option indicate?
It specifies a 1.0 m (3.3 ft) total transducer system length.

3. What connector is supplied?
Option 01 provides a Miniature coaxial ClickLoc® connector with connector protector and a standard cable.

4. What does the "00" approval option mean?
It indicates no agency approvals. If hazardous-area certifications are required, the 05 approval option should be selected.

5. Can this probe be used by itself?
No. It is designed to operate as part of a complete 3300 5 mm Transducer System with a compatible extension cable and Proximitor® Sensor.
