Precision Monitoring for Maximum Equipment Reliability

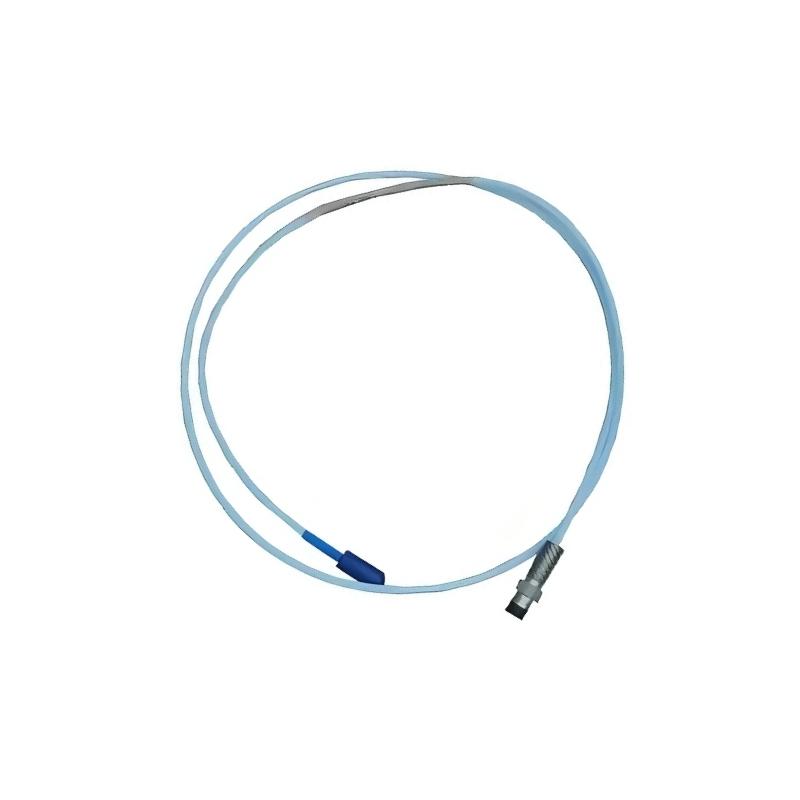

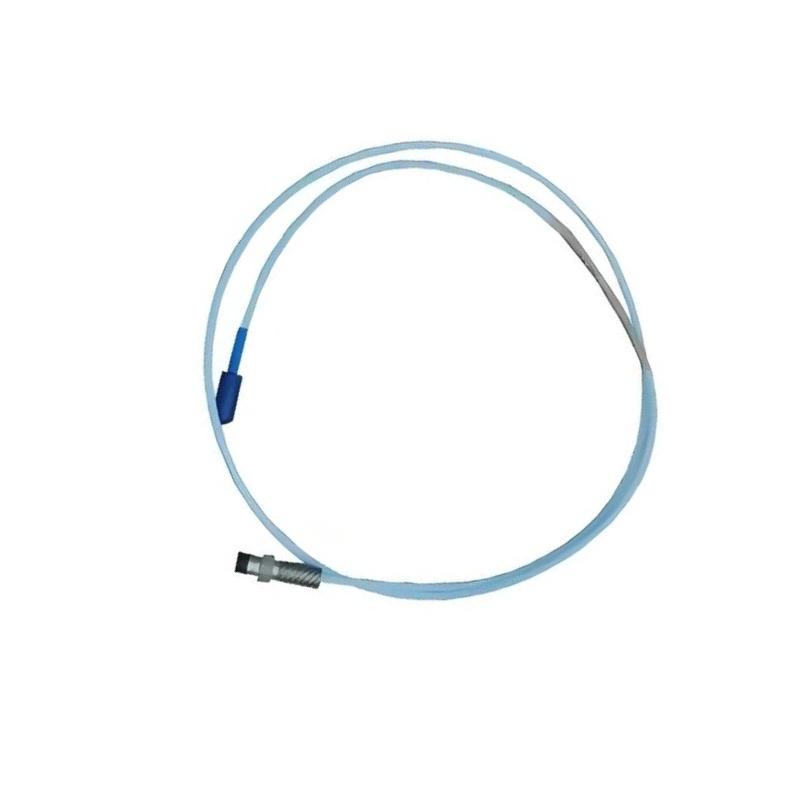

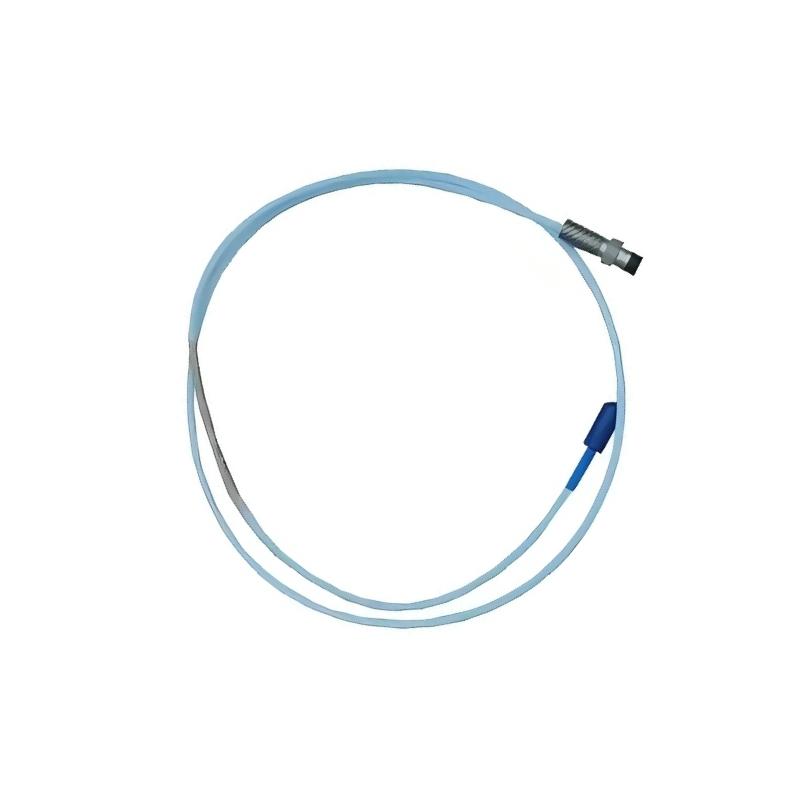

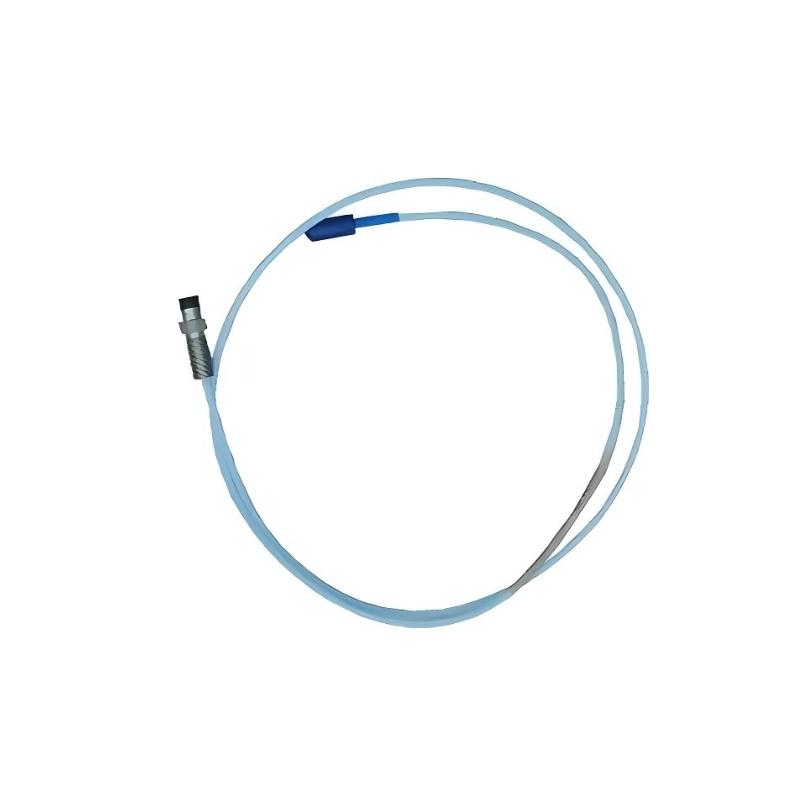

The Bently Nevada 330171-00-32-05-01-05 3300 5 mm Proximity Probe is a premium non-contact vibration sensor engineered to provide accurate shaft vibration, displacement, and position measurements for critical rotating machinery. Featuring a 3.2-inch probe body, 0.5-meter standard cable, and Miniature ClickLoc connector with connector protector, this model is ideal for machinery protection systems where measurement accuracy and long-term reliability are essential.
As part of the industry-proven 3300 5 mm Proximity Transducer System, this probe delivers consistent signal performance across a wide operating temperature range. Its rugged stainless-steel construction and compact sensing tip make it suitable for demanding industrial environments, helping maintenance teams improve equipment reliability while reducing unplanned downtime.
Product Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330171-00-32-05-01-05 |
| Product Type | 3300 5 mm Proximity Probe |
| Series | 3300 5 mm Transducer System |
| Probe Diameter | 5 mm |
| Measurement Technology | Eddy Current (Non-Contact) |
| Thread Type | 1/4-28 UNF |
| Armor | Without Armor |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 3.2 in |
| Integral Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector with Connector Protector |
| Agency Approval | Multiple Approvals (Option 05) |
| Housing Material | Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Operating Temperature | -35°C to +177°C (system dependent) |
| Dimensions | Approx. 235 × 25 × 25 mm |
| Weight | Approx. 0.323 kg |
Typical Applications
Designed for continuous machinery health monitoring, the 330171-00-32-05-01-05 is widely used across industries that depend on the reliable operation of rotating equipment.
Typical applications include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
Generators
-
Gearboxes
-
Fans and blowers
-
Petrochemical processing plants
-
Oil & gas production facilities
-
Power generation stations
-
Mining and heavy manufacturing equipment
Its compact probe geometry enables installation in confined spaces while delivering precise vibration and shaft position measurements that support predictive maintenance strategies.
Key Product Advantages
The 330171-00-32-05-01-05 is engineered to maximize machine availability and minimize maintenance costs.
-
High-precision non-contact vibration and displacement measurement
-
Compact 5 mm sensing tip for restricted installation spaces
-
Extended 3.2-inch probe body for greater mounting flexibility
-
Stable output signal with excellent long-term repeatability
-
Corrosion-resistant stainless-steel housing
-
Outstanding resistance to vibration, oil, moisture, and industrial contaminants
-
Secure ClickLoc connector for fast and reliable installation
-
Fully compatible with Bently Nevada 3300 transducer systems
-
Supports predictive maintenance and condition-based monitoring
-
Helps extend equipment service life while reducing unexpected shutdowns
Technical FAQs
1. What is the primary purpose of this proximity probe?
It continuously measures shaft vibration, radial displacement, and shaft position without physical contact.
2. Which sensing technology does this model use?
It utilizes eddy-current technology to provide accurate, non-contact measurements of conductive targets.
3. What does the "32" configuration represent?
The "32" option indicates an overall probe case length of 3.2 inches, allowing greater installation flexibility.
4. What cable length is included?
This model is supplied with a 0.5-meter (1.6-foot) standard integral cable.
5. What connector does this probe use?
It features a Miniature Coaxial ClickLoc connector with connector protector, ensuring a secure and vibration-resistant connection.
6. Is the probe suitable for continuous online monitoring?
Yes. It is specifically designed for 24/7 machinery protection and condition monitoring applications.
7. Which industrial equipment commonly uses this probe?
It is widely installed on turbines, compressors, pumps, generators, electric motors, gearboxes, and other rotating machinery.
8. Can it withstand harsh industrial environments?
Yes. The stainless-steel housing and industrial-grade materials provide excellent durability in demanding operating conditions.
9. Is it compatible with other Bently Nevada monitoring components?
Yes. It is designed to operate with compatible 3300 XL extension cables and 3300 XL Proximitor Sensors as a complete transducer system.
10. How does this probe improve maintenance efficiency?
By delivering accurate real-time machinery condition data, it enables early fault detection, reduces maintenance costs, and helps prevent costly unplanned downtime.
