Engineered for Accurate Machinery Condition Monitoring

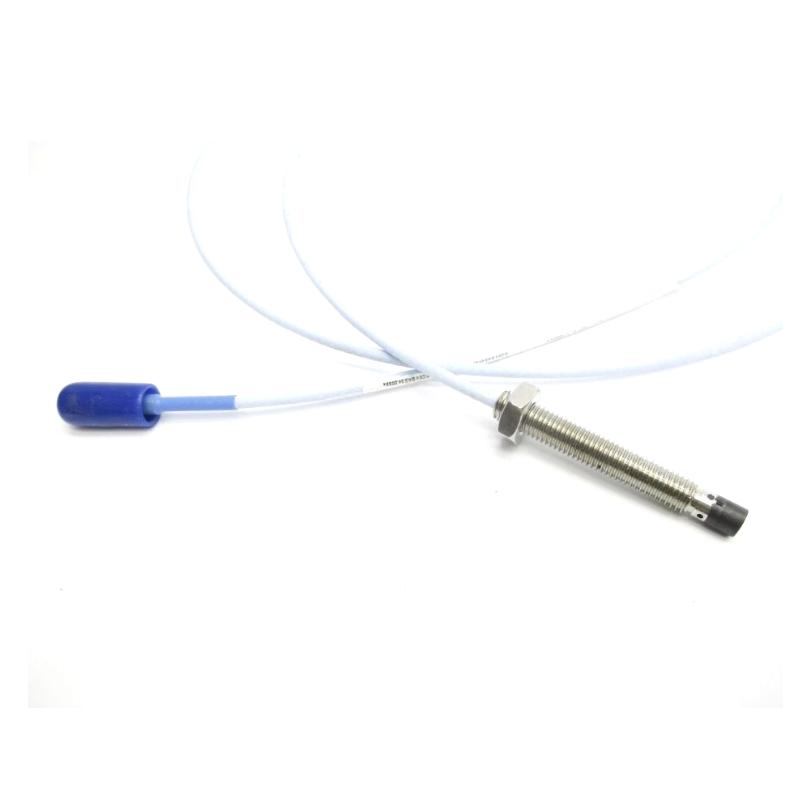

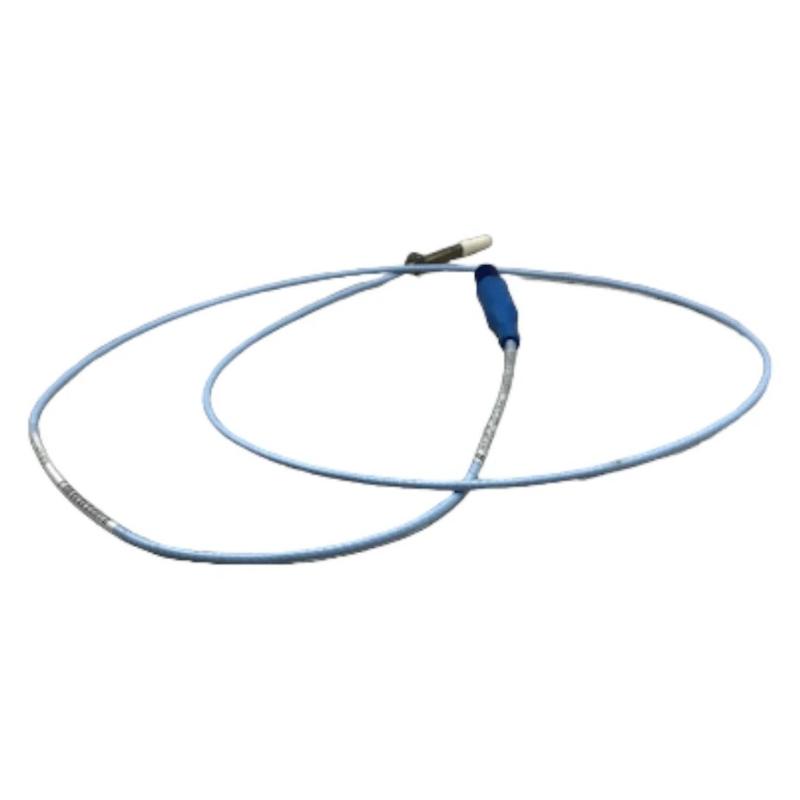

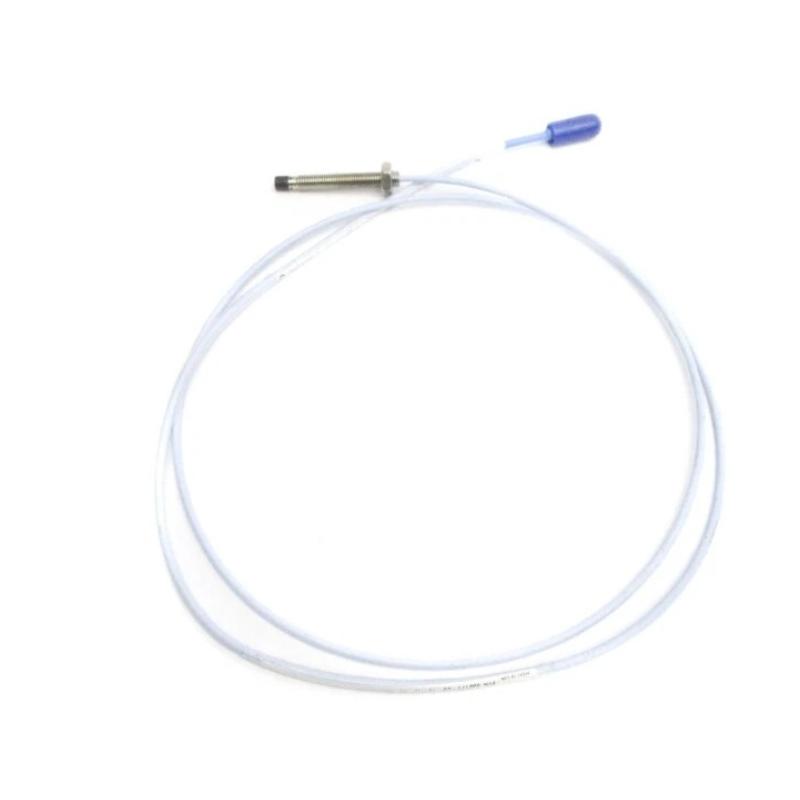

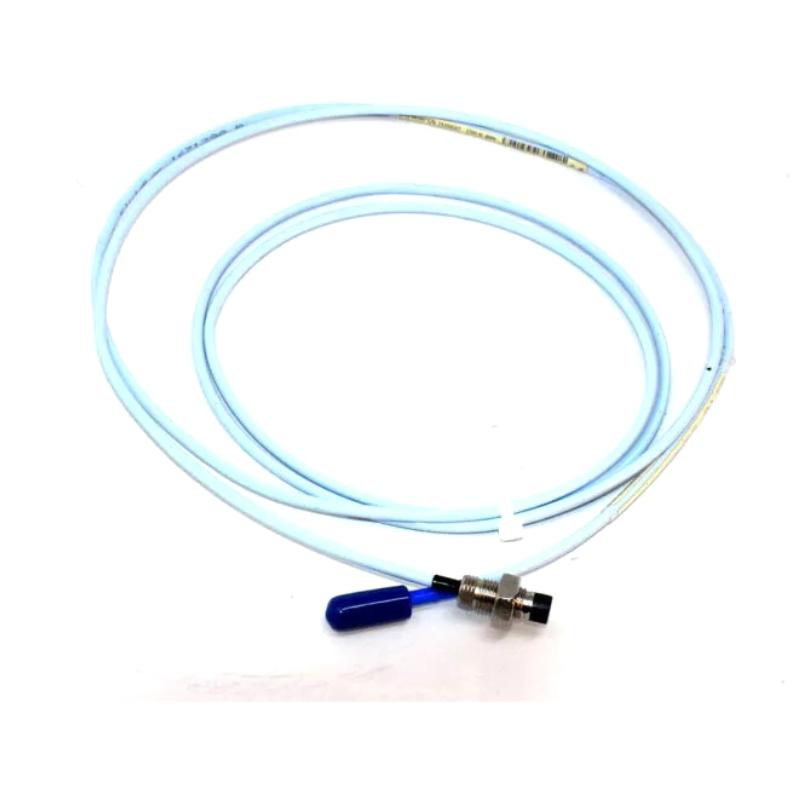

The Bently Nevada 330171-00-26-10-02-05 3300 5 mm Proximity Probe is a high-performance non-contact sensor designed to provide precise vibration, displacement, and shaft position measurements for critical rotating equipment. As a member of the trusted 3300 5 mm Proximity Probe family, this model combines compact dimensions with excellent sensing performance, making it an ideal solution for installations where mounting space is limited.
Designed for long-term reliability, the probe integrates seamlessly with compatible 3300 XL extension cables and Proximitor Sensors, delivering stable signal output for continuous machinery protection. Its rugged stainless-steel construction and industrial-grade components ensure dependable operation in demanding environments.
Technical Data Overview
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330171-00-26-10-02-05 |
| Product Type | 3300 5 mm Proximity Probe |
| Series | 3300 Series |
| Probe Diameter | 5 mm |
| Measurement Technology | Eddy Current (Non-Contact) |
| Thread Type | 1/4-28 UNF |
| Unthreaded Length | 0 in |
| Overall Case Length | 2.6 in (Option 26) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc |
| Agency Approval | Option 05 |
| Housing Material | Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Operating Temperature | -35°C to +177°C |
| Dimensions | Approx. 200 × 50 × 50 mm |
| Weight | Approx. 0.32 kg |
Ideal Applications
The 330171-00-26-10-02-05 is widely used in machinery protection and predictive maintenance systems across numerous industrial sectors.
Typical applications include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
Generators
-
Gearboxes
-
Fans and blowers
-
Petrochemical facilities
-
Power generation plants
-
Oil & gas processing equipment
Its compact 5 mm probe design makes it especially suitable for machines with restricted installation space while maintaining reliable measurement performance.
Performance Highlights
The 330171-00-26-10-02-05 offers an excellent balance of durability, precision, and operational efficiency.
Key benefits include:
-
High-accuracy non-contact vibration monitoring
-
Compact design for confined mounting locations
-
Stable signal output across long operating periods
-
Rugged stainless-steel housing for industrial environments
-
Excellent resistance to oil, dust, moisture, and vibration
-
Fast installation with secure ClickLoc connector
-
Compatible with Bently Nevada 3300 monitoring systems
-
Supports predictive maintenance and asset reliability programs
-
Helps reduce unexpected equipment failures
-
Designed for continuous 24/7 industrial operation
Technical FAQs
1. What is the primary function of this proximity probe?
It measures shaft vibration, radial displacement, and shaft position without contacting the rotating surface.
2. What sensing technology does it use?
The probe operates using proven eddy-current sensing technology for highly accurate non-contact measurements.
3. Why choose a 5 mm probe instead of an 8 mm version?
The 5 mm probe is ideal for applications with limited installation space while still providing reliable vibration monitoring.
4. Is this probe suitable for continuous machine monitoring?
Yes. It is designed for permanent installation in online machinery protection systems.
5. Which equipment can it monitor?
It is commonly installed on turbines, compressors, motors, generators, pumps, gearboxes, and other rotating machinery.
6. What is the operating temperature range?
The probe is designed to operate between -35°C and +177°C under normal industrial conditions.
7. Which components are required for a complete transducer system?
It is typically used together with a compatible 3300 XL extension cable and 3300 XL Proximitor Sensor.
8. What connector does this model use?
It features a Miniature Coaxial ClickLoc connector, providing a secure and vibration-resistant connection.
9. Is the probe resistant to harsh industrial environments?
Yes. The stainless-steel housing and industrial-grade materials provide excellent durability in demanding operating conditions.
10. How does this probe improve maintenance efficiency?
By continuously detecting vibration abnormalities and shaft movement, it enables predictive maintenance and helps prevent costly unplanned downtime.
