Bently Nevada 330171-00-23-10-02-05 3300 5mm Proximity Probe

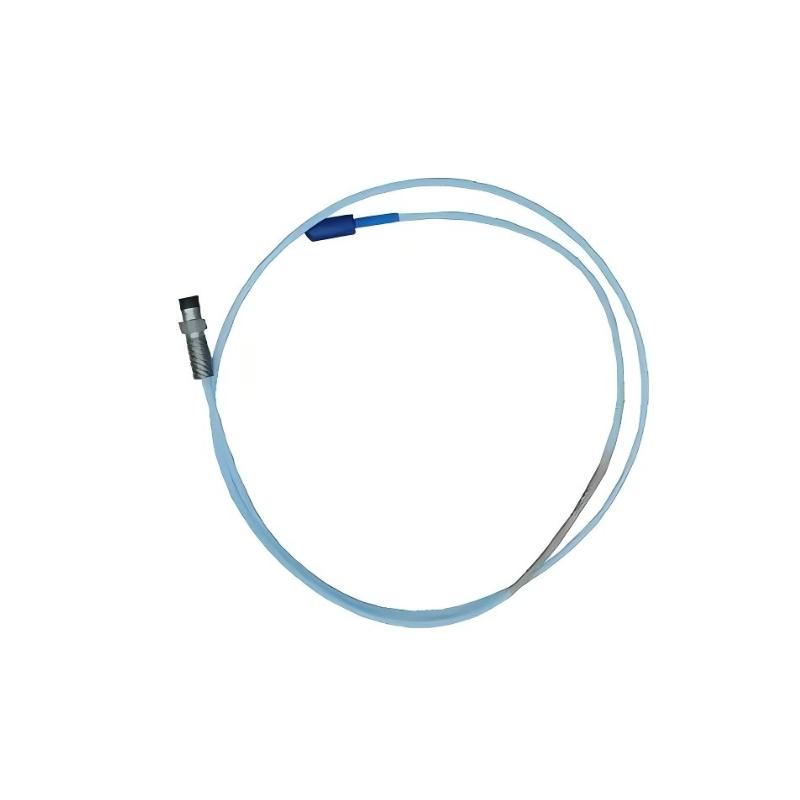

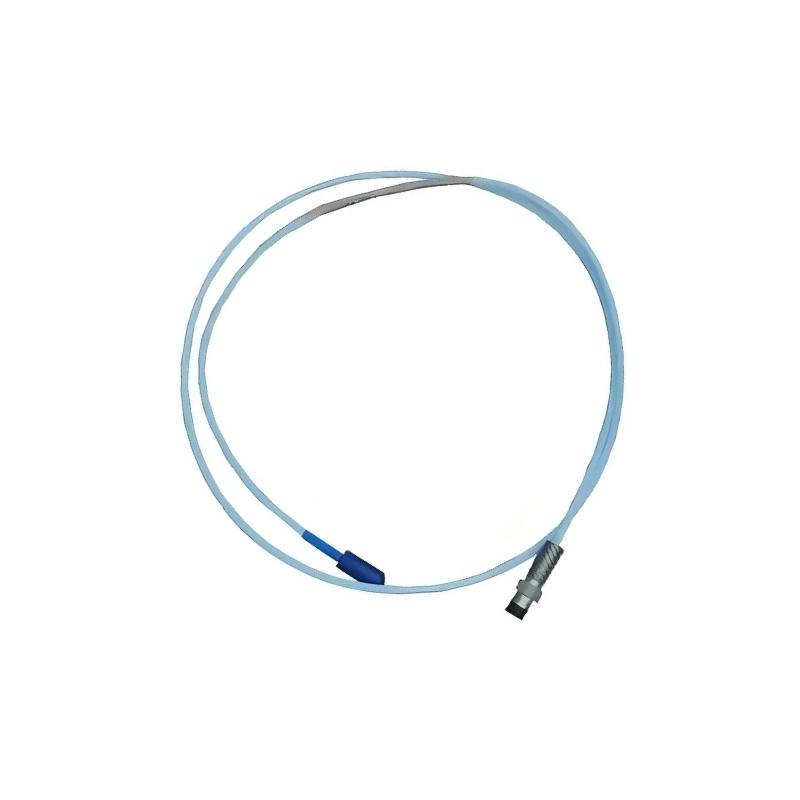

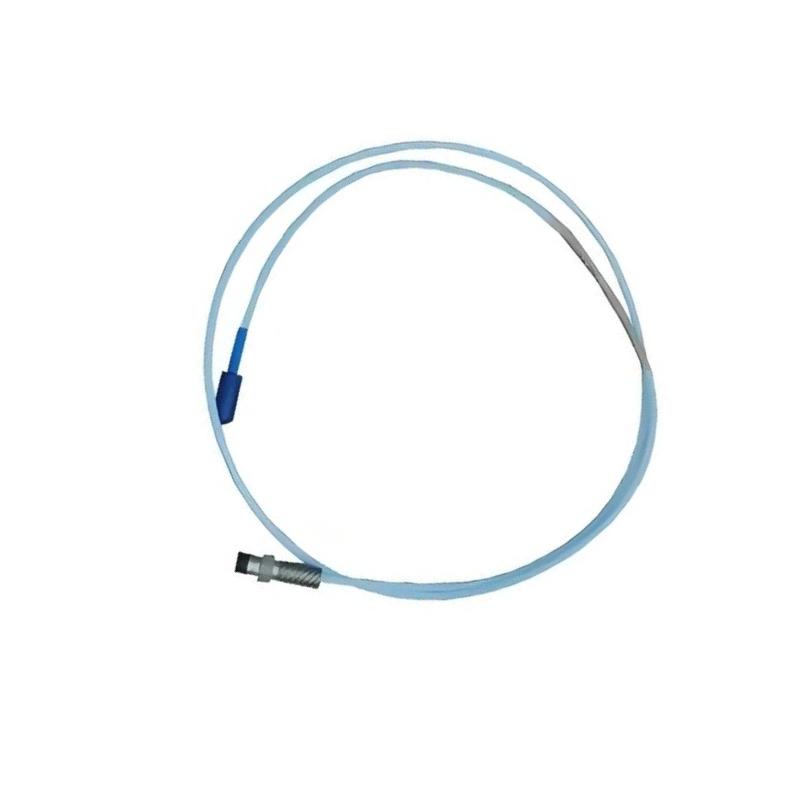

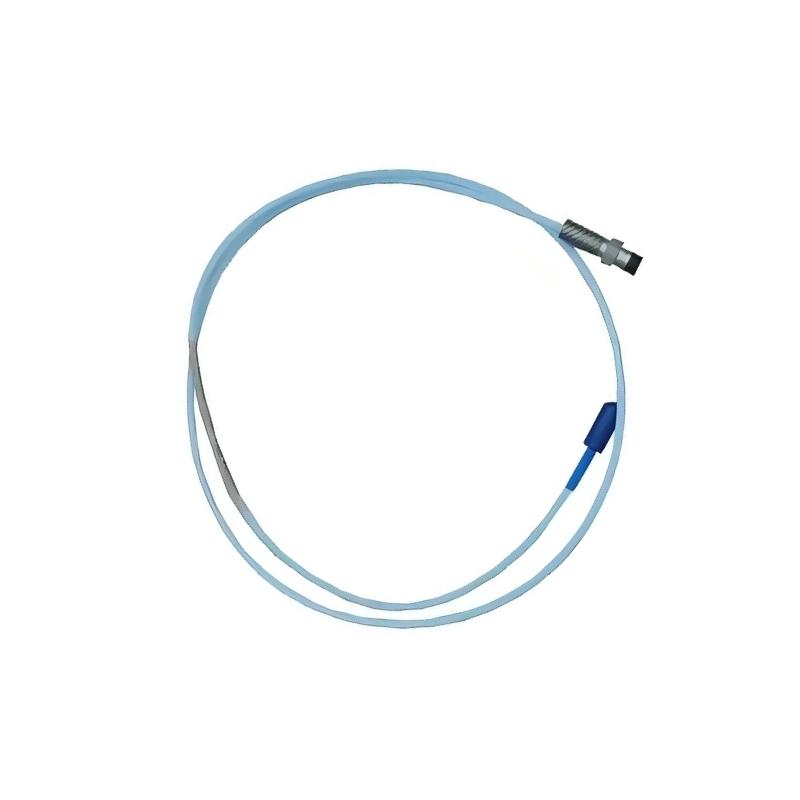

Name: Bently Nevada 330171-00-23-10-02-05 3300 5mm Proximity Probe
Brand: Bently Nevada PLC
SKU: 10029
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330171-00-23-10-02-05
Product Origin:USA
Product Dimensions:Total Length : 1.0 meter
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The Bently Nevada 330171-00-23-10-02-05 is a 3300 5 mm Proximity Probe designed for precise non-contact measurement of shaft vibration, axial position, Keyphasor® reference, and speed on rotating machinery. It is part of the 3300 5 mm Transducer System, which consists of a 330171 probe, a 3300 XL extension cable, and a 3300 XL Proximitor® Sensor. Together, these components provide a calibrated eddy-current proximity measurement system for critical machinery protection and condition monitoring.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Part Number	330171-00-23-10-02-05
Product Type	3300 5 mm Proximity Probe
Probe Diameter	5 mm
Measurement Technology	Eddy-current, non-contact
Thread	1/4-28 UNF, without armor
Unthreaded Length	00 = 0.0 in (0 mm)
Overall Case Length	23 = 2.3 in
Total Cable Length	10 = 1.0 m (3.3 ft)
Connector Option	02 = Miniature coaxial ClickLoc connector, standard cable
Agency Approval	05 = Multiple Approvals
Probe Tip Material	Polyphenylene Sulfide (PPS)
Probe Case Material	AISI 303/304 Stainless Steel
Operating Temperature	-35°C to +177°C (-31°F to +351°F)

Typical Applications

The 330171-00-23-10-02-05 is commonly used for:

Shaft vibration monitoring
Radial shaft displacement measurement
Axial (thrust) position monitoring
Keyphasor® reference
Speed measurement
Machinery protection systems
Condition monitoring of turbines, compressors, motors, pumps, and generators

Key Features

5 mm eddy-current sensing technology for precise shaft displacement and vibration measurement.
1/4-28 UNF threaded probe with stainless-steel construction for industrial durability.
1.0 m integral cable with Miniature ClickLoc connector for secure installation.
Multiple agency approvals (05 option) for use in certified industrial environments.
Compatible with 3300 XL extension cables and 3300 XL Proximitor® Sensors for a fully calibrated transducer system.

Frequently Asked Questions

1. What does the "23" option indicate?
It specifies an overall probe case length of 2.3 inches.

2. What cable length is supplied?
The 10 option specifies a 1.0 m (3.3 ft) probe cable.

3. What connector does this model use?
It is supplied with a Miniature coaxial ClickLoc connector (Option 02) using a standard cable.

4. What does the "05" suffix mean?
It indicates the probe includes Multiple Agency Approvals, such as applicable CSA, ATEX, and IECEx certifications listed in the Bently Nevada approvals guide.

5. Is this probe compatible with 3300 XL Proximitor Sensors?
Yes. The 330171 probe is designed to operate with a compatible 3300 XL extension cable and 3300 XL Proximitor® Sensor as part of the complete transducer system.
