Bently Nevada 330171-00-20-10-02-00 3300 5mm Proximity Probe

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Bently Nevada 330171-00-20-10-02-00 3300 5mm Proximity Probe

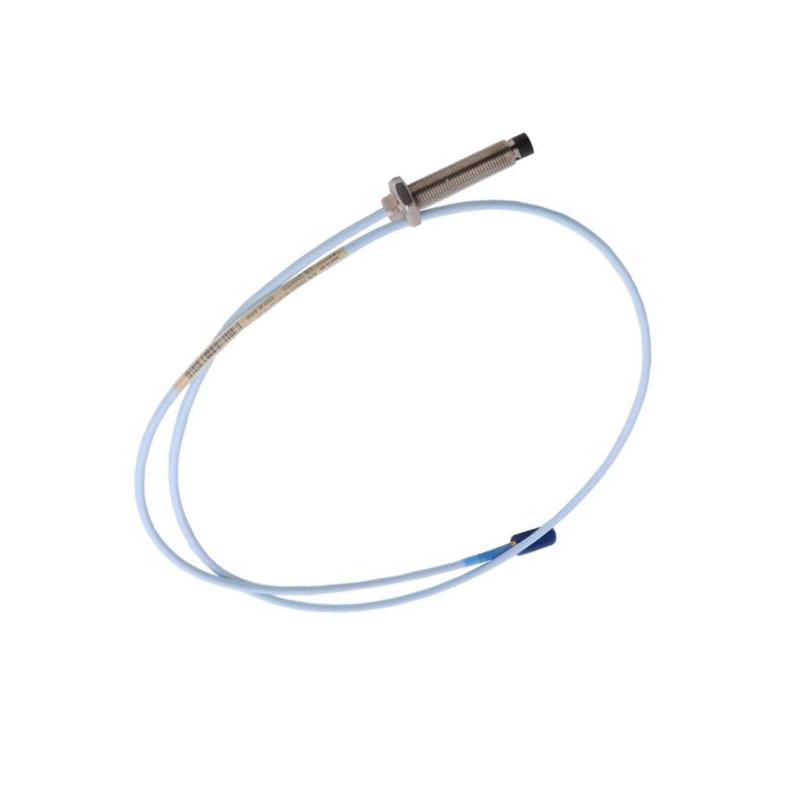

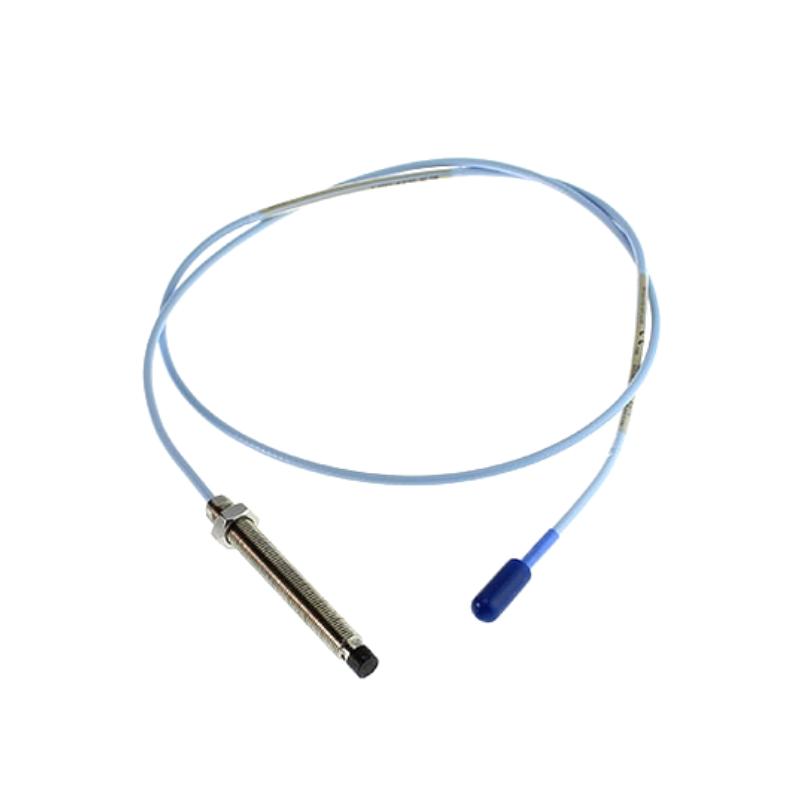

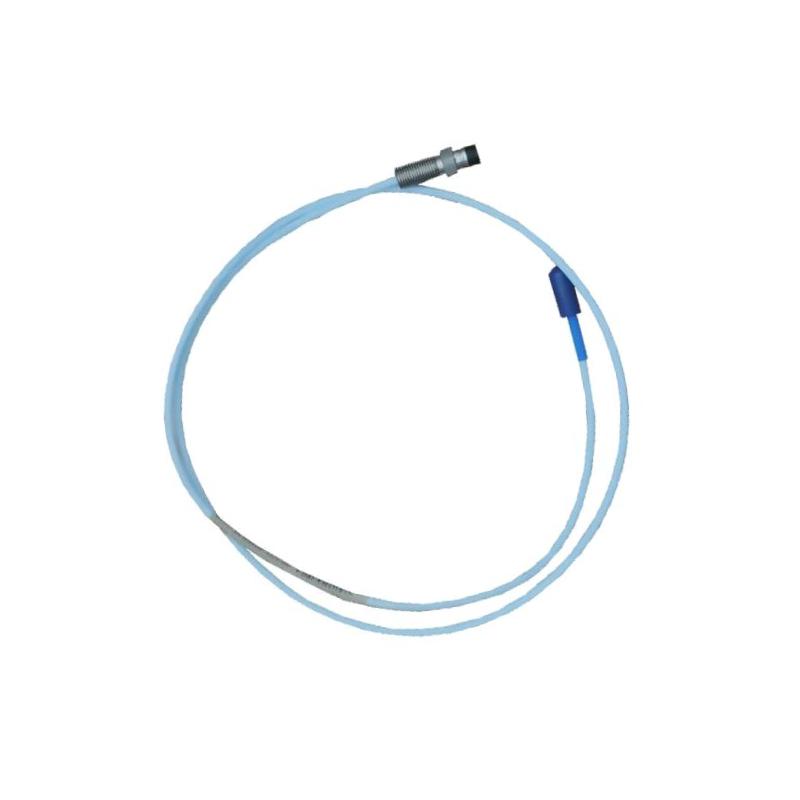

Name: Bently Nevada 330171-00-20-10-02-00 3300 5mm Proximity Probe
Brand: Bently Nevada PLC
SKU: 10027
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330171-00-20-10-02-00
Product Origin:USA
Product Dimensions:Total Length:1.0 meter
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Compact Eddy-Current Probe for Continuous Shaft Vibration and Position Monitoring

The Bently Nevada 330171-00-20-10-02-00 is a 3300 5 mm Proximity Probe designed for non-contact measurement of shaft vibration, radial displacement, and axial position on rotating machinery. It is part of the 3300 5 mm Transducer System and is commonly used where installation space is limited, such as small bearings, compact compressors, gearboxes, and electric motors.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Part Number	330171-00-20-10-02-00
Product Type	3300 5 mm Proximity Probe
Probe Diameter	5 mm
Thread	1/4-28 UNF
Armor	Without armor
Unthreaded Length	00 = 0 in
Overall Case Length	20 = 2.0 in (50.8 mm)
Total Length	10 = 1.0 m (3.3 ft)
Connector	02 = Miniature coaxial ClickLoc® connector, standard cable
Agency Approval	00 = Not required
Probe Cable	75 Ω triaxial cable
Operating Temperature	-35°C to +177°C (-31°F to +350°F)
Probe Case Material	AISI 303/304 stainless steel
Probe Tip Material	Polyphenylene sulfide (PPS)

Typical Applications

The 330171-00-20-10-02-00 is commonly installed on:

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Gearboxes
Fans and blowers

Typical measurements include:

Shaft vibration
Radial shaft displacement
Axial position
Rotor movement
Machine condition monitoring
Machinery protection systems

Key Features

Compact 5 mm probe for installations with limited mounting space.
Non-contact eddy-current sensing for continuous shaft vibration and position monitoring.
1/4-28 UNF threaded stainless-steel probe body.
1.0 m integral triaxial cable with ClickLoc® connector for secure installation.
Compatible with the 3300 5 mm Transducer System, including matching extension cables and Proximitor® Sensors.
Suitable for continuous industrial operation in temperatures from -35°C to +177°C.

Frequently Asked Questions

1. What does 330171 identify?
It identifies a 3300 5 mm proximity probe with 1/4-28 UNF threads and no armor.

2. What does the "20" option mean?
It specifies an overall probe case length of 2.0 inches (50.8 mm).

3. What does the "10" option indicate?
It specifies a 1.0-meter (3.3-foot) total probe length.

4. What connector is supplied?
Option 02 provides a Miniature coaxial ClickLoc® connector with standard cable.

5. Does this version have hazardous-area approvals?
No. Option 00 indicates no agency approvals. Versions ending in 05 or CN provide certified approval options for hazardous locations.

6. What operating temperature is supported?
The probe operates from -35°C to +177°C (-31°F to +350°F).

7. Is it compatible with 3300 XL 8 mm systems?
No. It is designed specifically for the 3300 5 mm Transducer System and should be used with compatible 3300 5 mm extension cables and Proximitor® Sensors.
