Compact Eddy-Current Probe for Shaft Vibration and Position Monitoring

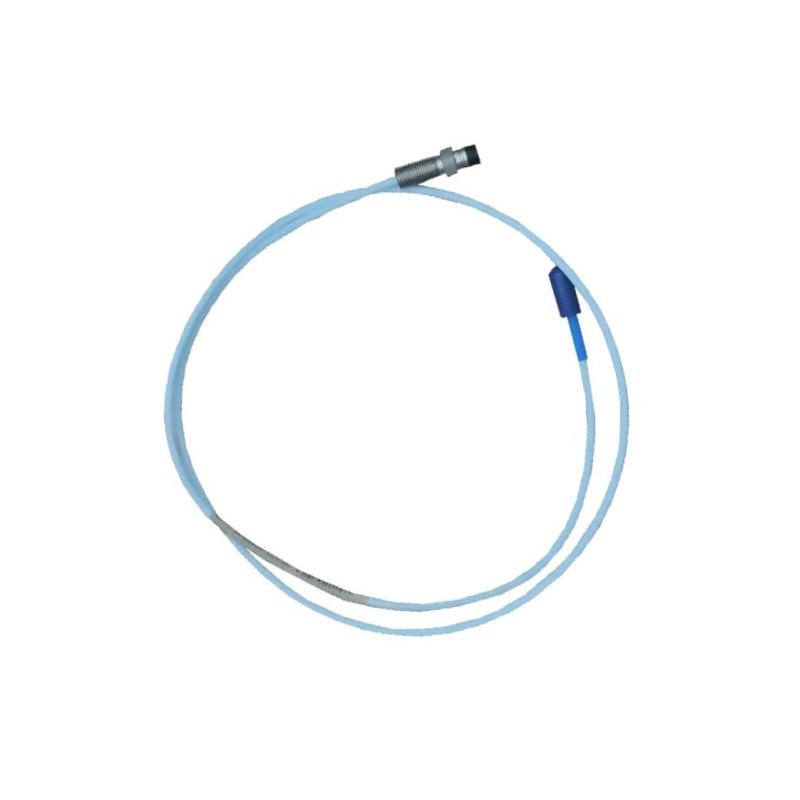

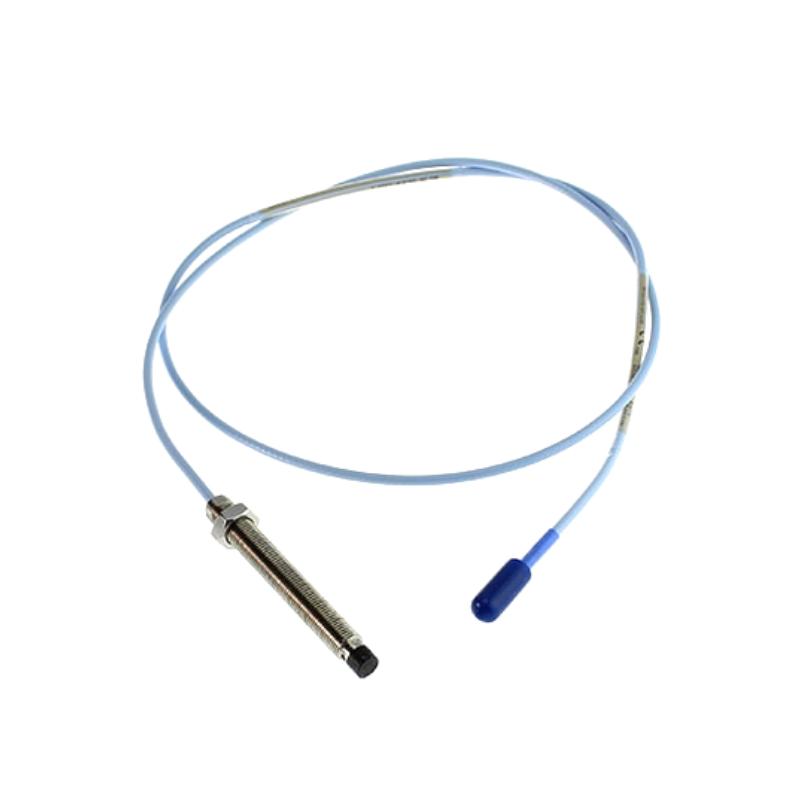

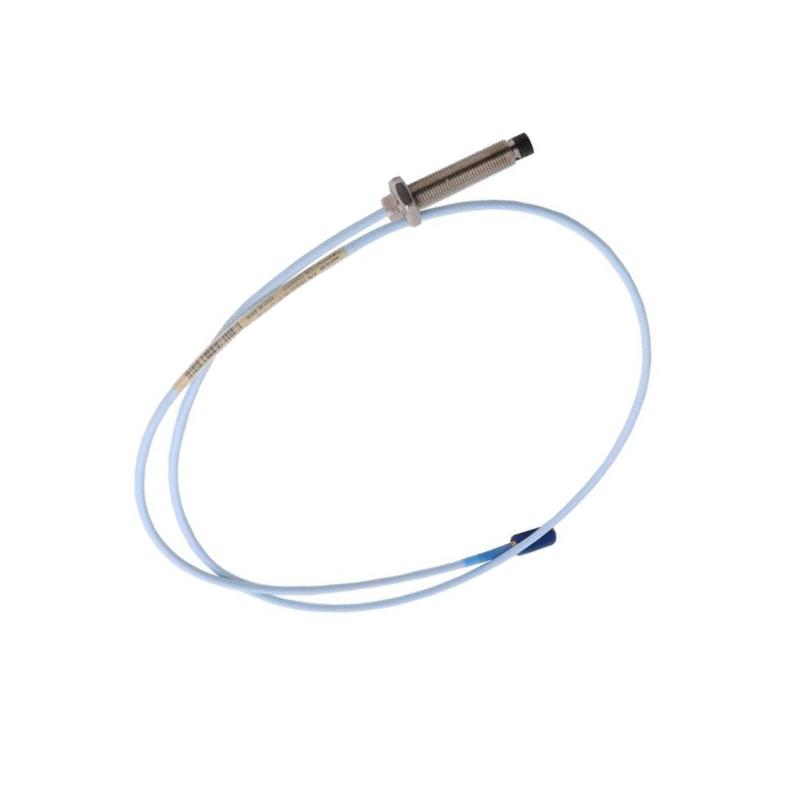

The Bently Nevada 330171-00-20-05-02-05 is a 3300 5 mm Proximity Probe designed for use with the 3300 5 mm Proximity Transducer System. When paired with a compatible 3300 XL Extension Cable and 3300 XL Proximitor® Sensor, it provides accurate non-contact measurement of shaft vibration, radial displacement, shaft position, and Keyphasor® reference signals for rotating machinery. The complete transducer system is factory calibrated for interchangeability and stable performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330171-00-20-05-02-05 |
| Product Type | 3300 5 mm Proximity Probe |
| Series | 3300 5 mm Proximity Transducer System |
| Measurement Principle | Eddy-current, non-contact |
| Probe Thread | 1/4-28 UNF |
| Armor | Without armor |
| Unthreaded Length | 00 = 0.0 in |
| Overall Case Length | 20 = 2.0 in (50.8 mm) |
| Integral Cable Length | 05 = 0.5 m (1.6 ft) |
| Connector | 02 – Miniature coaxial ClickLoc® connector |
| Agency Approval | 05 – Multiple Approvals (CSA, ATEX, IECEx) |
| Probe Housing | Stainless steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Tensile Strength | 222 N (50 lbf) |
| Operating Temperature | -35°C to +177°C (-31°F to +351°F) |
| Minimum Bend Radius | 25.4 mm (1 in) |
