Bently Nevada 330171-00-16-90-01-05 3300 5mm Proximity Probe

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Bently Nevada 330171-00-16-90-01-05 3300 5mm Proximity Probe

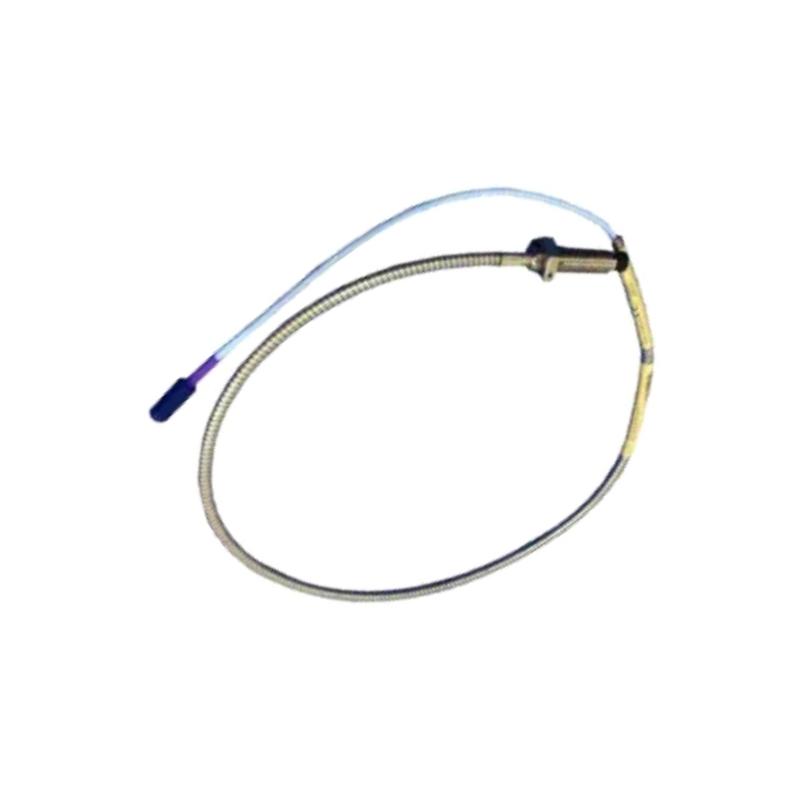

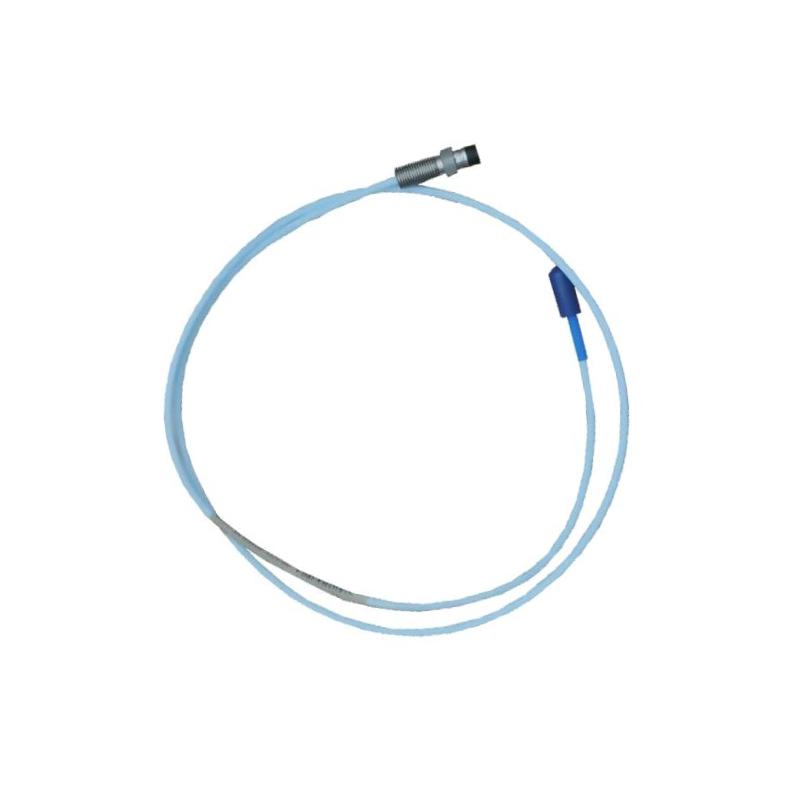

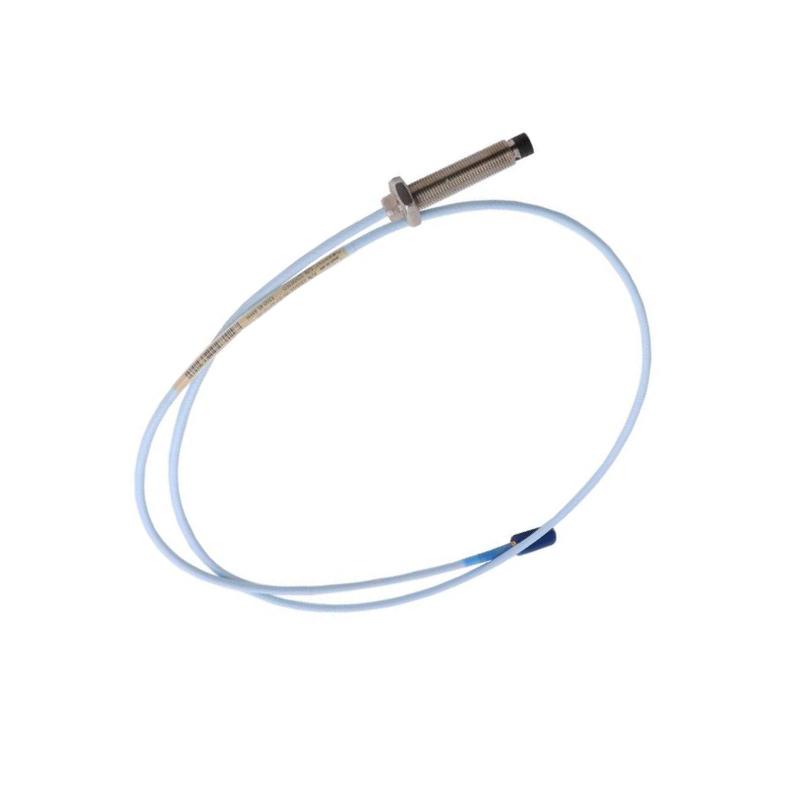

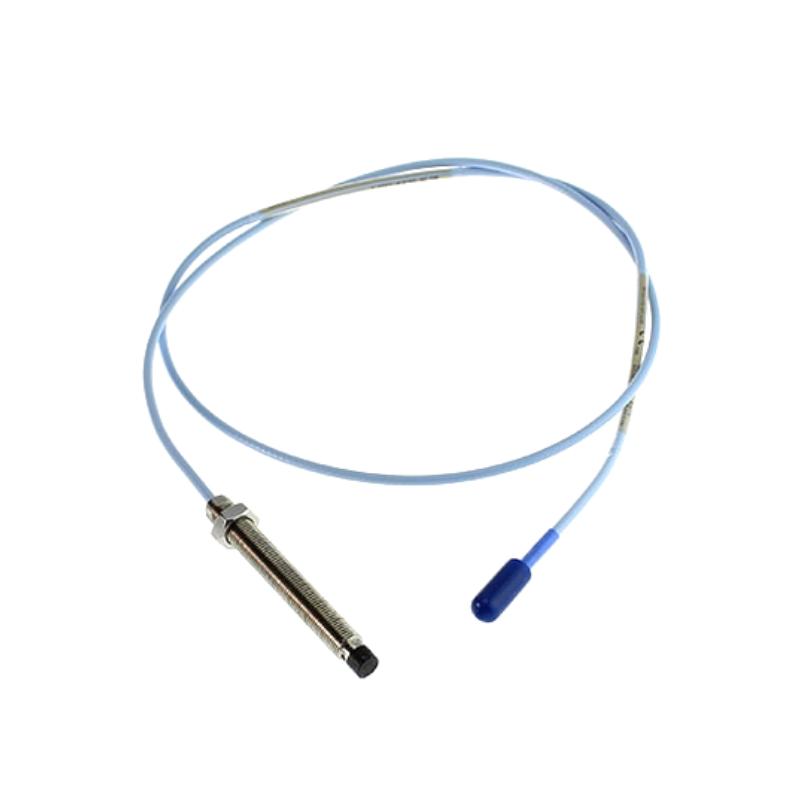

Name: Bently Nevada 330171-00-16-90-01-05 3300 5mm Proximity Probe
Brand: Bently Nevada PLC
SKU: 10024
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330171-00-16-90-01-05
Product Origin:USA
Product Dimensions:Total Length:9.0 meters
Product Weight:2.9kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The Bently Nevada 330171-00-16-90-01-05 is a 3300 5 mm Proximity Probe designed for non-contact measurement of shaft vibration, shaft position, Keyphasor® (speed/reference), and other rotating machinery parameters. It is part of the 3300 5 mm Proximity Transducer System, which consists of a 3300 5 mm probe, a 3300 XL extension cable, and a 3300 XL Proximitor® Sensor. Together, these components provide a stable output voltage proportional to the distance between the probe tip and the target surface.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Part Number	330171-00-16-90-01-05
Product Type	3300 5 mm Proximity Probe
Probe Diameter	5 mm
Probe Thread	1/4-28 UNF
Armor	Without armor
Unthreaded Length	00 = 0.0 in
Overall Case Length	16 = 1.6 in
Integrated Cable Length	90 = 9.0 m (29.5 ft)
Connector	01 = Miniature coaxial ClickLoc® connector with connector protector
Agency Approval	05 = Multiple approvals
Operating Temperature	–35 °C to +177 °C (–31 °F to +351 °F)
Probe Case Material	AISI 303/304 Stainless Steel
Probe Tip Material	Polyphenylene Sulfide (PPS)

Typical Applications

The 330171-00-16-90-01-05 is commonly used on:

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Generators
Gearboxes

Typical measurements include:

Radial shaft vibration
Shaft position
Keyphasor® speed/reference
Machine condition monitoring
Rotating machinery protection

Key Features

Non-contact eddy-current sensing for shaft vibration and position monitoring.
9.0 m (29.5 ft) integrated cable for long-distance installations.
ClickLoc® connector with connector protector for secure, reliable connections.
1/4-28 UNF threaded probe body for standard mounting.
API 670-compatible when used as part of the complete 3300 5 mm Transducer System.
Multiple international approvals (Option 05) for use in certified hazardous locations where applicable.

Frequently Asked Questions

1. What does the "90" option indicate?
It specifies a 9.0 m (29.5 ft) integrated probe cable.

2. What does connector option "01" mean?
It indicates a Miniature coaxial ClickLoc® connector with connector protector.

3. What does approval code "05" represent?
It denotes multiple international approvals. For the complete list of applicable certifications, refer to the Bently Nevada Approvals Quick Reference Guide.

4. Can this probe be used alone?
No. It is designed to operate as part of a complete 3300 5 mm Transducer System, together with a compatible 3300 XL extension cable and 3300 XL Proximitor® Sensor.

5. What is the operating temperature range?
The probe is rated for –35 °C to +177 °C (–31 °F to +351 °F).
