High-Precision 3300 5 mm Eddy-Current Probe for Machinery Protection

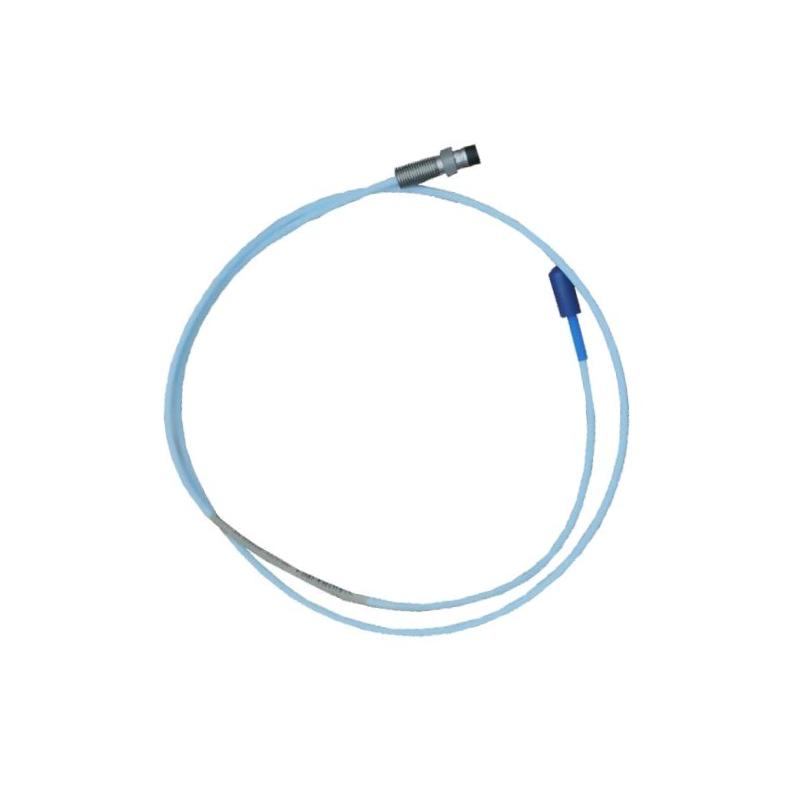

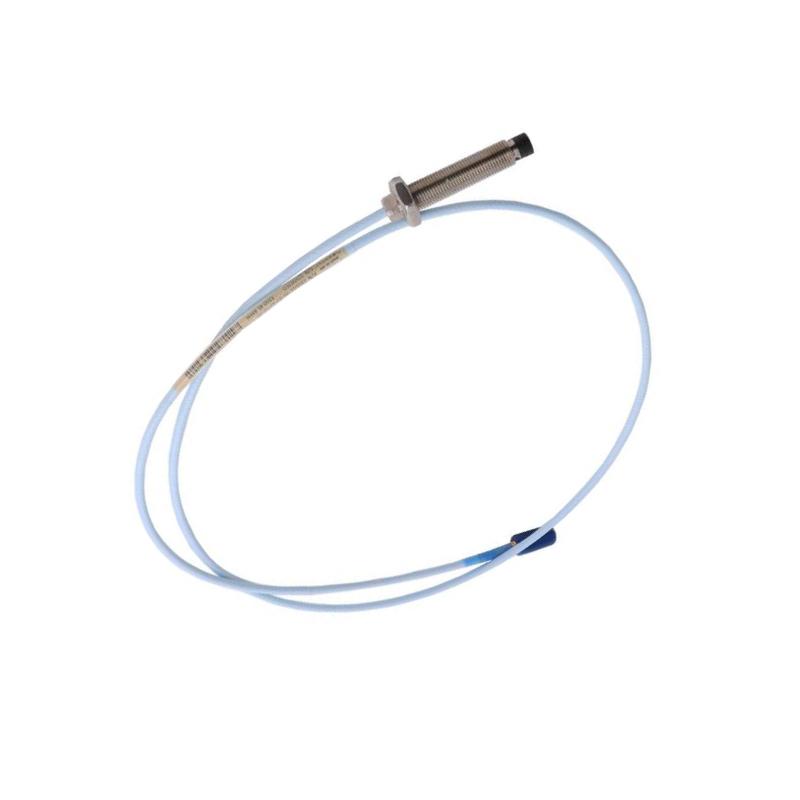

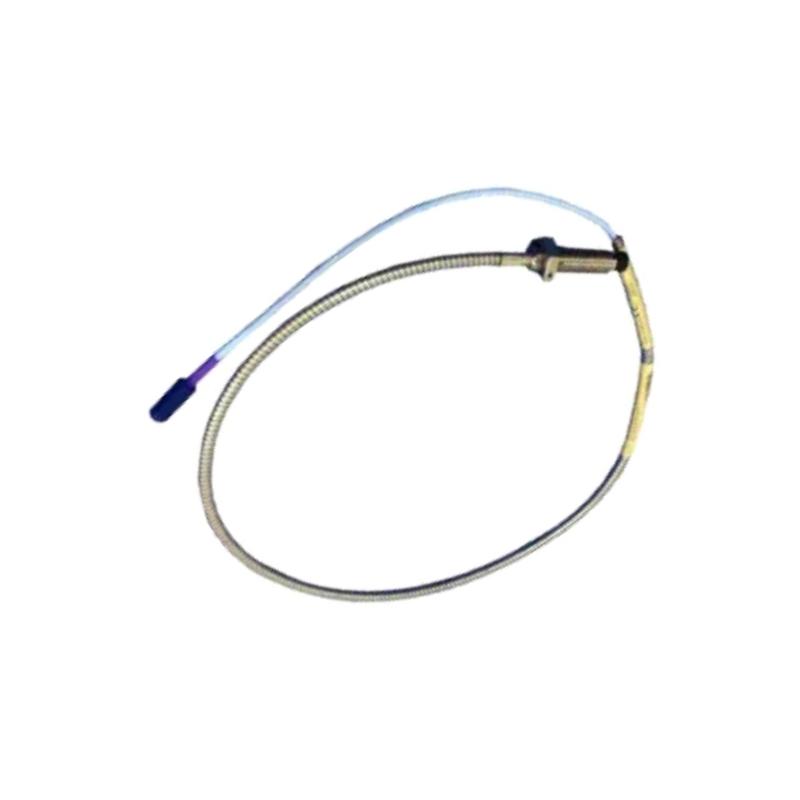

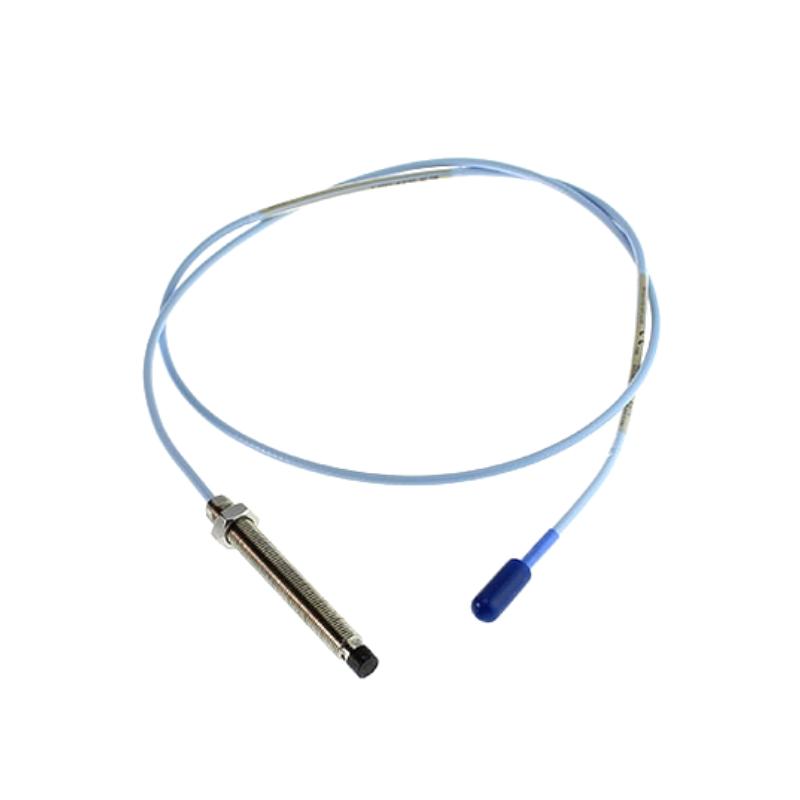

The Bently Nevada 330171-00-16-10-00-05 is a 3300 5 mm Proximity Probe designed for use with the 3300 5 mm Proximity Transducer System. When paired with a compatible 3300 XL Extension Cable and 3300 XL Proximitor® Sensor, it provides accurate non-contact measurement of shaft vibration, radial position, axial displacement, Keyphasor®, and speed on fluid-film bearing machinery. The complete transducer system is factory calibrated to provide interchangeable components and stable performance over a wide temperature range.

Technical Specifications

Frequently Asked Questions

1. What does the "16" option indicate?
It specifies a 1.6-inch (40.6 mm) overall probe case length.

2. What does the "10" option indicate?
It specifies a 1.0 m (3.3 ft) integral triaxial cable.

3. What does the "05" approval option mean?
It designates Multiple Agency Approvals, including applicable hazardous-area certifications listed in the Bently Nevada approvals guide.

4. Is connector option "00" a standard catalog configuration?
No. Current Bently Nevada documentation lists connector options 01, 02, 11, and 12. A 00 connector code appears to be a special-order or legacy configuration and should be verified before replacement.

5. Can this probe operate by itself?
No. It must be used as part of a complete 3300 5 mm Proximity Transducer System, including a compatible extension cable and Proximitor® Sensor.
