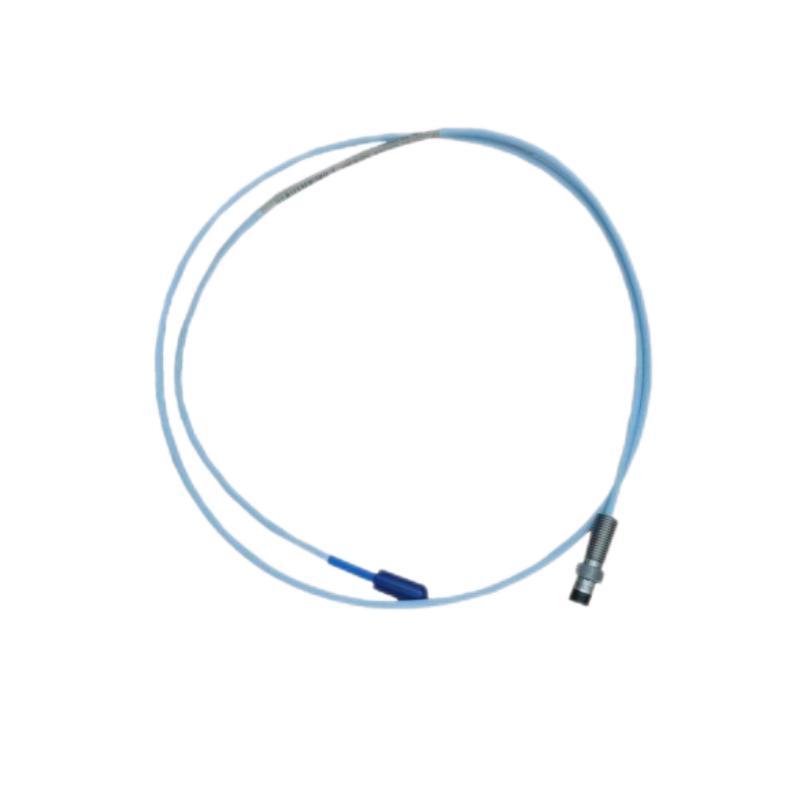

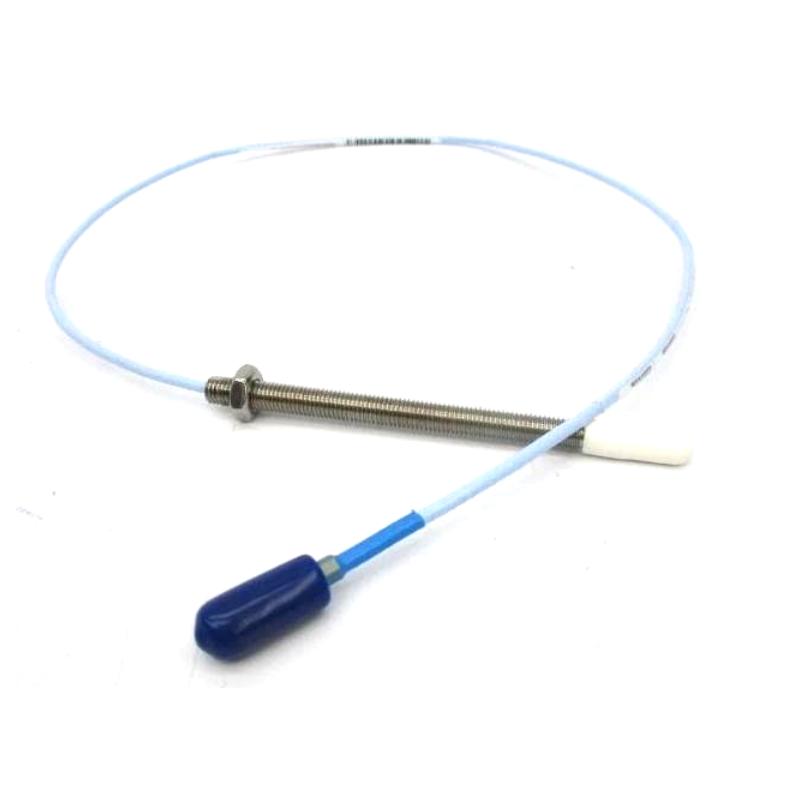

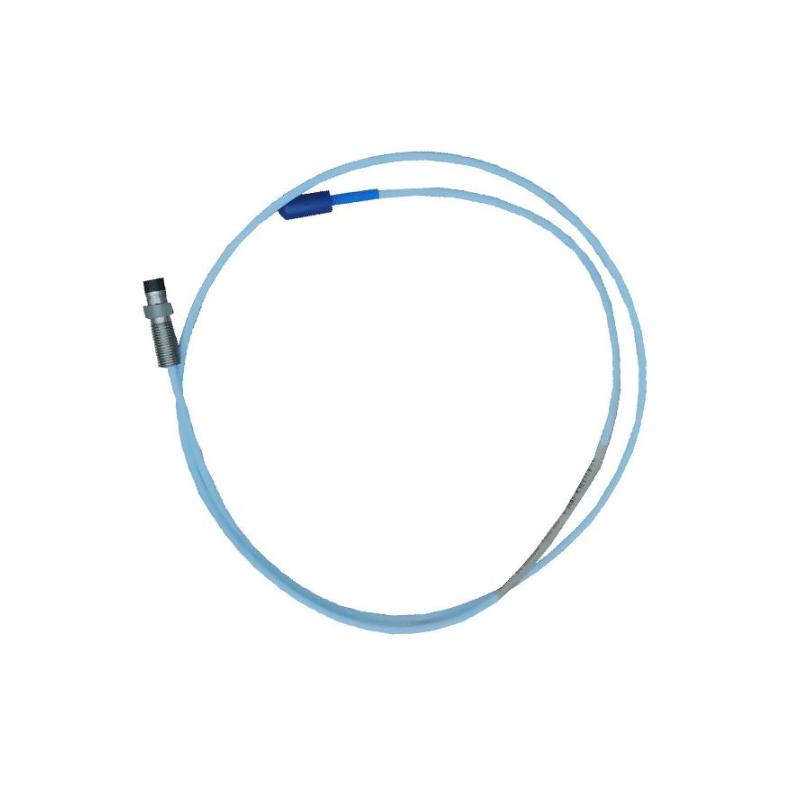

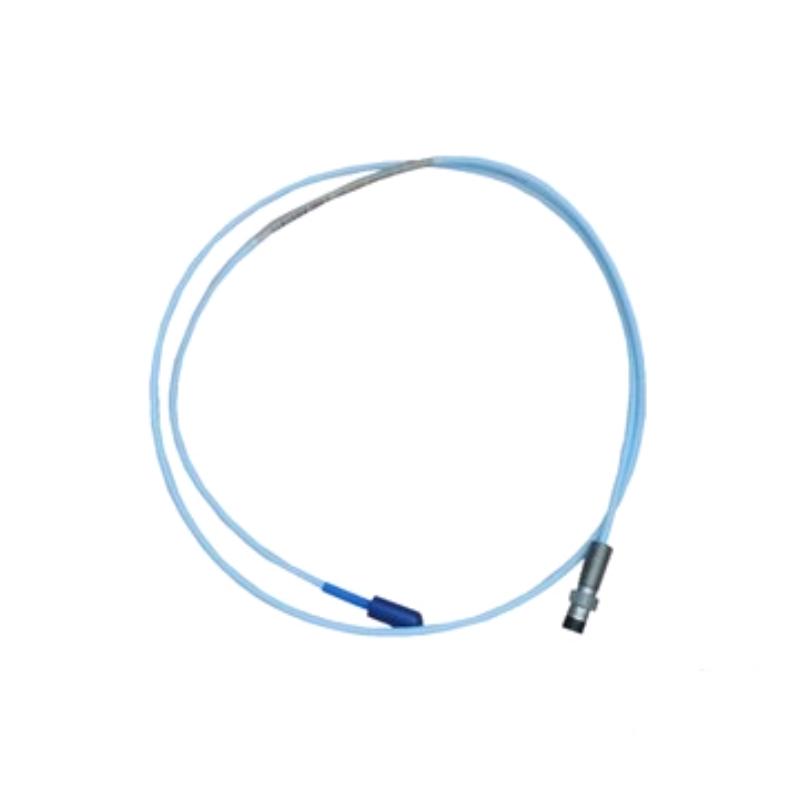

Bently Nevada 330171-00-16-05-02-00 3300 5mm Proximity Probe

Brand:Bently Nevada PLC
Item No.:330171-00-16-05-02-00
Product Origin:USA
Product Dimensions:Total Length:0.5 meter
Product Weight:0.16kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

330171-00-32-05-01-05330171-00-32-05-01-05 4330171-00-32-05-01-05 3330171-00-32-05-01-05(1)

Compact 5 mm Eddy-Current Probe for Shaft Vibration and Position Monitoring

The Bently Nevada 330171-00-16-05-02-00 is a 3300 5 mm Proximity Probe used as part of the 3300 5 mm Proximity Transducer System. When paired with a compatible 3300 XL Extension Cable and 3300 XL Proximitor® Sensor, it provides accurate non-contact measurement of shaft vibration, radial position, axial position, Keyphasor® signals, and rotational speed on fluid-film bearing machines.

Technical Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330171-00-16-05-02-00
Product Type3300 5 mm Proximity Probe
Series3300 5 mm Proximity Transducer System
Measurement PrincipleEddy-current, non-contact
Thread Type1/4-28 UNF-2A
ArmorWithout armor
Unthreaded Length00 = 0.0 in
Overall Case Length16 = 1.6 in
Integral Cable Length05 = 0.5 m (1.6 ft)
Connector02 = Miniature coaxial ClickLoc® connector
Agency Approval00 = No approvals
Probe Cable75 Ω triaxial FEP insulated
Housing MaterialStainless steel
Probe Tip MaterialPolyphenylene Sulfide (PPS)
Operating Temperature-35°C to +177°C (-31°F to +351°F)
Minimum Bend Radius25.4 mm (1 in)
Probe Tensile Strength222 N (50 lbf)


Typical Applications

The 330171-00-16-05-02-00 is commonly installed on:

  • Steam turbines
  • Gas turbines
  • Centrifugal compressors
  • Pumps
  • Electric motors
  • Gearboxes
  • Industrial fans
  • Blowers

Typical measurements include:

  • Shaft vibration
  • Radial shaft displacement
  • Axial shaft position
  • Keyphasor® reference
  • Speed measurement
  • Machinery condition monitoring


Key Features

Compact 1.6-Inch Probe Body

The 1.6-inch probe case is well suited for installations where mounting space is limited while maintaining the measurement performance of the 3300 5 mm system.

High-Accuracy Eddy-Current Measurement

The probe measures shaft movement without physical contact, minimizing wear while providing stable and repeatable vibration and position measurements.

Durable Stainless-Steel Construction

The probe features a stainless-steel housing and a PPS sensing tip, providing excellent resistance to oil, moisture, vibration, and elevated temperatures.

Miniature ClickLoc® Connector

The ClickLoc® connector offers a secure, vibration-resistant electrical connection and simplifies installation and maintenance.

Complete System Compatibility

This probe is designed for use only as part of the complete 3300 5 mm Proximity Transducer System, together with a compatible extension cable and Proximitor® Sensor. Factory calibration ensures interchangeability and measurement accuracy.


Frequently Asked Questions

1. What is the primary use of this probe?
It provides non-contact measurement of shaft vibration, shaft position, and rotational reference signals for rotating machinery.

2. What does the "16" option represent?
It specifies an overall probe case length of 1.6 inches.

3. How long is the integral cable?
The 05 option indicates a 0.5-meter (1.6-foot) integral triaxial cable.

4. Which connector is included?
The 02 option specifies a Miniature coaxial ClickLoc® connector.

5. What does the final "00" indicate?
It means the probe is supplied without hazardous-area approvals. For certified installations, variants with approval option 05 are available.

6. Can this probe operate by itself?
No. It must be used with a compatible 3300 XL Extension Cable and 3300 XL Proximitor® Sensor as a complete calibrated transducer system.

7. What operating temperature is supported?
The probe operates from -35°C to +177°C (-31°F to +351°F).

8. Which industries typically use this probe?
It is widely used in oil & gas, power generation, petrochemical, mining, marine, and general industrial rotating machinery applications.
