Compact Eddy-Current Probe for Shaft Vibration and Position Monitoring

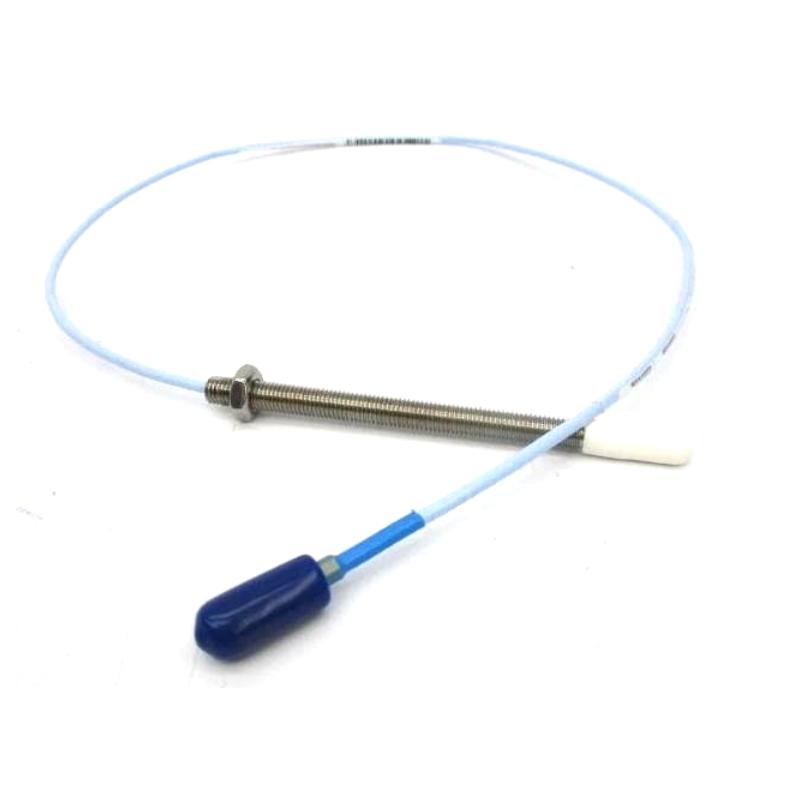

The Bently Nevada 330171-00-15-20-02-05 is a 3300 5 mm Proximity Probe designed for accurate, non-contact measurement of shaft vibration, axial position, Keyphasor®, and speed on rotating machinery. As part of the 3300 5 mm Proximity Transducer System, the probe is used together with a 3300 XL Proximitor® Sensor and a compatible 3300 XL extension cable to provide a calibrated eddy-current measurement system.
The 3300 5 mm system is commonly used where installation space is limited or where smaller shaft diameters require a compact probe design. It is suitable for turbines, compressors, pumps, motors, and other fluid-film bearing machines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330171-00-15-20-02-05 |
| Product Type | 3300 5 mm Proximity Probe |
| Probe Diameter | 5 mm |
| Measurement Technology | Eddy-current, non-contact |
| Thread Type | 1/4-28 UNF (without armor) |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.5 in |
| Total Length | 2.0 m (6.6 ft) |
| Connector | Miniature coaxial ClickLoc® connector |
| Agency Approval | Multiple Approvals (CSA, ATEX, IECEx) |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Proximitor® | 3300 XL Proximitor® Sensor |
