Product Overview

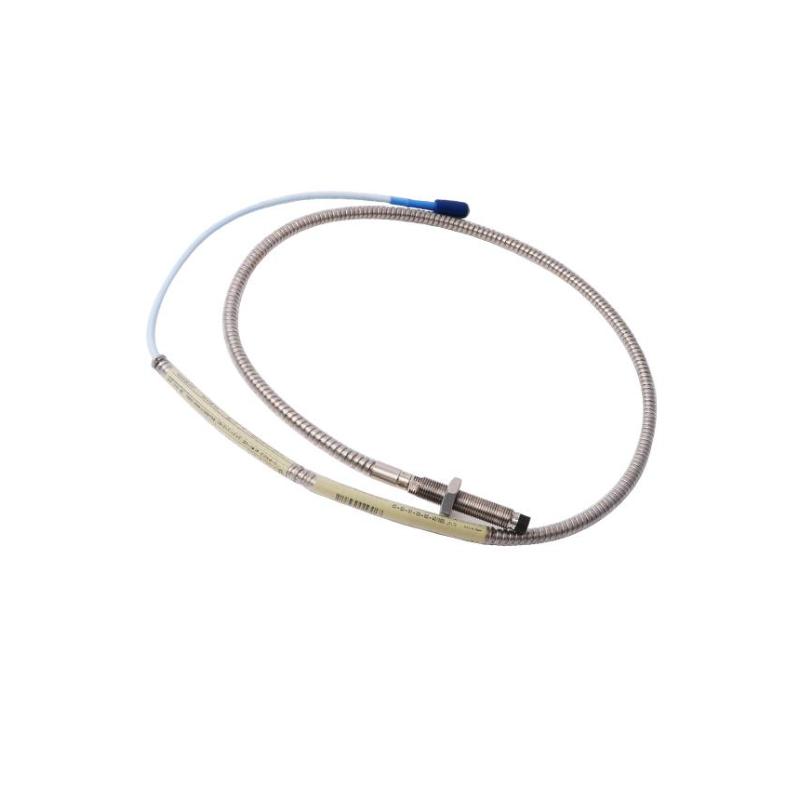

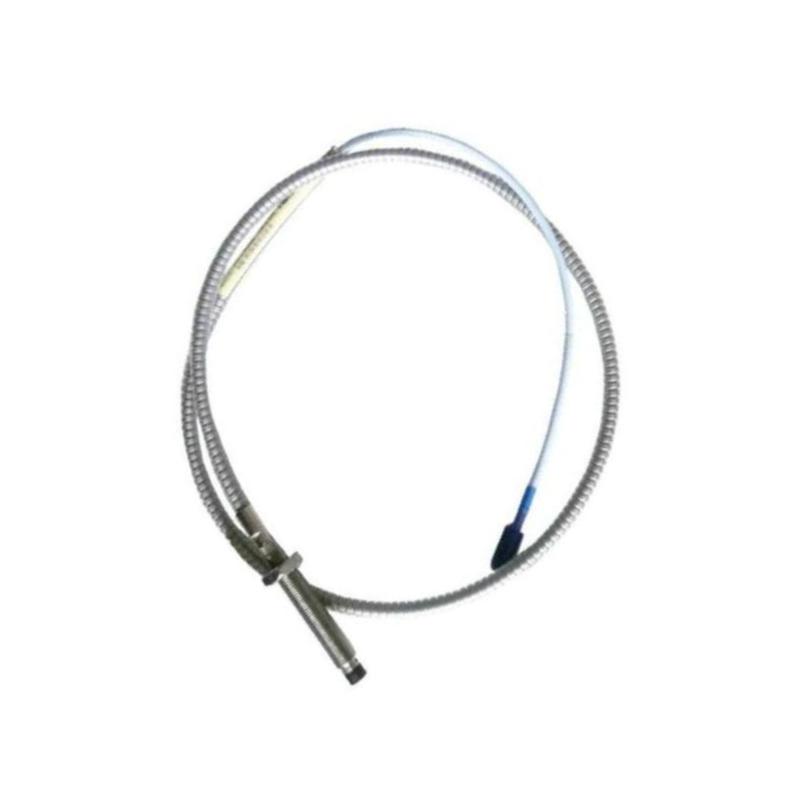

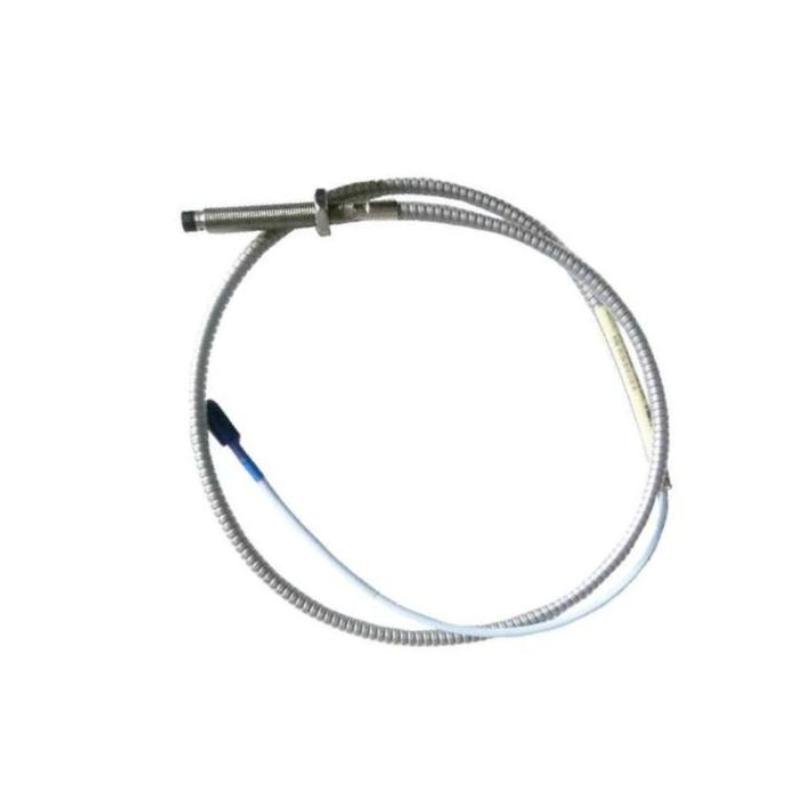

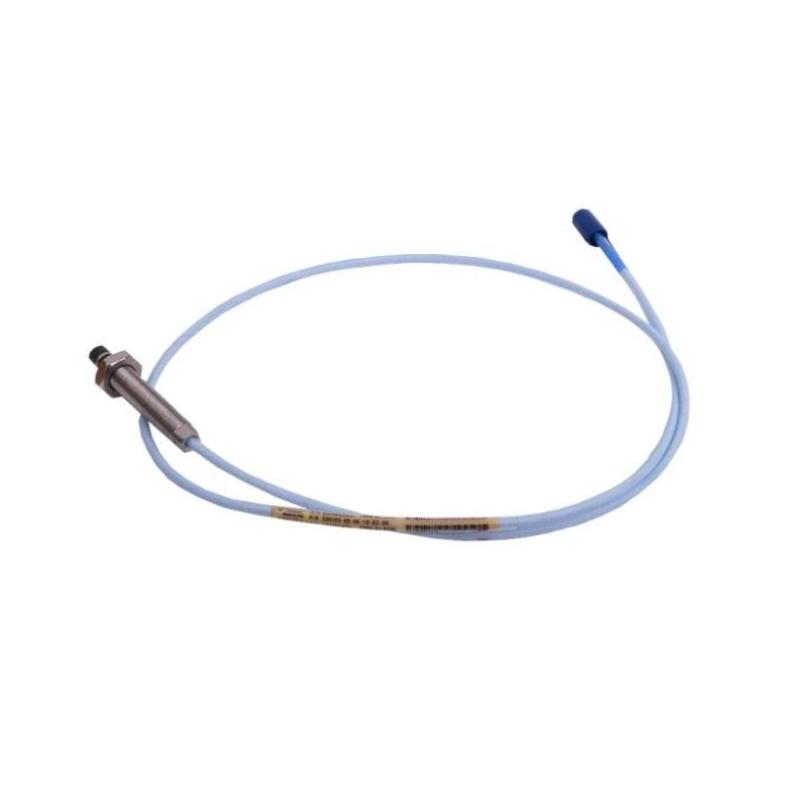

The Bently Nevada 330104-00-05-50-02-RU is a 3300 XL 8 mm Proximity Probe designed for non-contact measurement of shaft vibration, radial displacement, shaft position, and Keyphasor® reference signals on rotating machinery. It is part of the 3300 XL 8 mm Proximity Transducer System, which consists of:
-
3300 XL 8 mm Proximity Probe
-
3300 XL Extension Cable
-
3300 XL Proximitor® Sensor
When used together, the system provides highly accurate eddy-current measurements and complies with API 670 requirements for 5-meter systems.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Part Number | 330104-00-05-50-02-RU |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Principle | Eddy-current, non-contact |
| Probe Thread | M10 × 1 (armored probe) |
| Probe Diameter | 8 mm |
| Unthreaded Length | 00 = 0 mm |
| Overall Case Length | 05 = 50 mm |
| Total Cable Length | 50 = 5.0 m (16.4 ft) |
| Connector Type | 02 = Miniature coaxial ClickLoc® connector, standard cable |
| Approval Option | RU = Region-specific approval designation |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| System Compatibility | 3300 XL Extension Cable and 3300 XL Proximitor® Sensor |
Typical Applications
The 330104-00-05-50-02-RU is commonly used on:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Pumps
-
Electric motors
-
Gearboxes
-
Fans
-
Generators
Typical monitoring functions include:
-
Shaft vibration monitoring
-
Radial shaft displacement
-
Shaft position measurement
-
Rotor dynamic analysis
-
Keyphasor® speed and phase reference
-
Machinery protection systems
Key Features
Armored Metric Probe
The 330104 features an M10 × 1 threaded stainless-steel case with integral armor, providing additional protection for the probe cable in demanding industrial environments.
5-Meter System
The 50 option specifies a 5.0-meter total system length, designed for use with a compatible 5-meter 3300 XL Proximitor® Sensor.
ClickLoc® Connector
The 02 connector option includes a Miniature coaxial ClickLoc® connector with a standard cable, providing secure connections and simplifying installation.
Rugged Construction
The probe uses:
-
303/304 stainless-steel housing
-
Polyphenylene Sulfide (PPS) probe tip
-
75 Ω triaxial cable
for reliable long-term operation in industrial environments.
API 670 Performance
When installed as a complete transducer system, the 3300 XL 8 mm 5-meter configuration complies with API 670 requirements for linearity, accuracy, and temperature stability.
Frequently Asked Questions
1. What does the 330104 model indicate?
It identifies a 3300 XL 8 mm proximity probe with M10 × 1 metric threads and armored cable.
2. What does the "50" option mean?
It specifies a 5.0-meter (16.4 ft) total transducer system length.
3. What connector does this probe use?
Option 02 provides a Miniature coaxial ClickLoc® connector with a standard cable.
4. What does the "RU" suffix represent?
It indicates a region-specific approval or certification option. The exact certification should be confirmed using the product nameplate or the Bently Nevada Approvals Quick Reference Guide.
5. Can this probe operate by itself?
No. It must be used with a compatible 3300 XL Extension Cable and 3300 XL Proximitor® Sensor as a complete transducer system.
6. What measurements can it perform?
It measures shaft vibration, radial displacement, shaft position, and rotational reference signals on rotating machinery.
